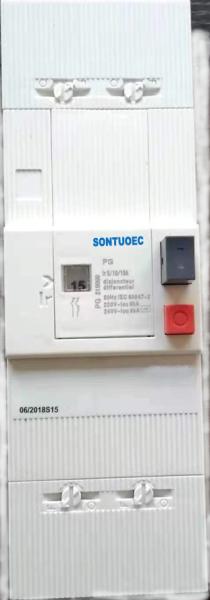

NFC62411 PG series earth leakage circuit breaker 2P 4P DISJONCTEURS DIFFERENTIEL 300mA,500mA
GENERAL
STG series are suitable in AC 50Hz, 250/440V circuit with overload and earth
leakage protection. The rated current is adjustable from 10A up to
60A. User can select suitable current to better protection against
overload and short circuit. The products comply with
NFC62411,NFC61450,IEC60947.2 Standard.
Specification:
| Type | STG230 | STG460 |
| Rated Current(A) | 5A,10A,15A,20A,25A,32A,40A,50A,60A | 10A,15A,20A,25A,32A,40A,50A,60A |
| Pole Number | 2Pole | 4Pole |
| Leakage acting current(mA) | 300mA,500mA | 300mA ,500mA |
| Range of break-off | 0.5~1.0X IΔn | 0.5~1.0X IΔn |
| Rated Voltage(V) | 220V-250VAC | 240V/415VAC |
| Tripping time | 100ms | 100mS |
| Life | 100000 times | 100000 times |
| Ambient Temperature | -5°C ~ +55 °C | -5°C ~ +55 °C |
