Red Copper 4P Molded Case 100kA MCCB Circuit Breaker

STM1 MCCB 3P 4P 63A 100A 125A 160A 225A 250A 400A 630A 800A 1000A 1250A 1600A Molded Case Circuit Breaker(MCCB)

GENERAL

STM1(CM1) series moulded case breakers (hereafter reffered to as simply breakers) are one of the new type breakers which have
been developed by the company using international advanced design and manufacturing technology. The rated insulation
voltage of the breakers is 800V , suitable for turn-on or turn-off not frequently and starting a motor not frequently in the circuit of
AC 50Hz/60Hz, rated working voltage 690V or below (CMl -63 is 400V) rated working current up to 800A (CM1-800 is motor
protection-free). The breakers have overload, short-circuit and under voltage protection devices. so as to protect the circuit and
the power equipment against damage. The breakers comply with the demands of the following standards:

IEC60947-1, IEC60947-2, IEC60947-4-1 , IEC60947-5-l

Technical Parameter:

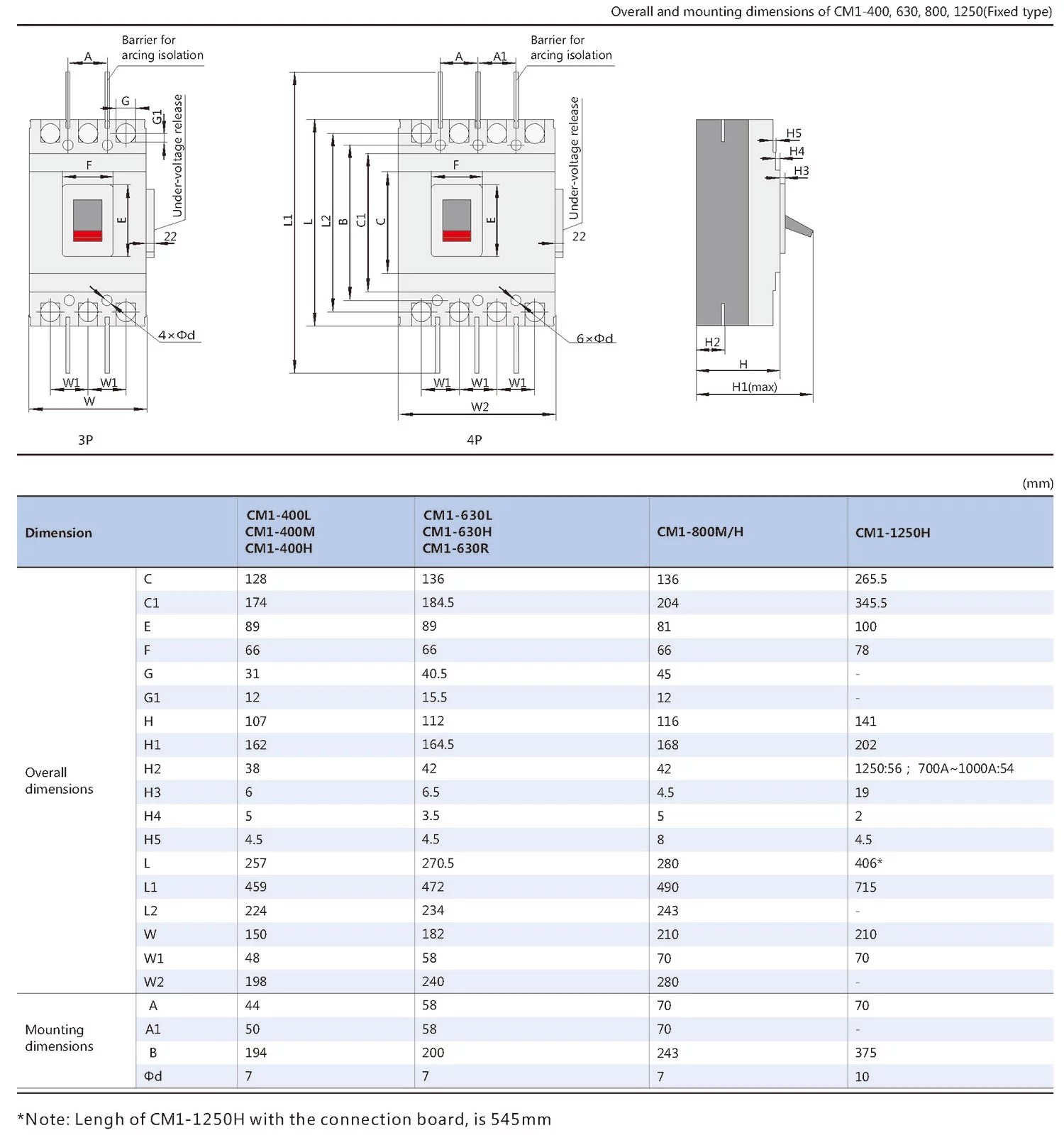

Frame Current Inm	Model	Pole	Rated Current In (A)	Rated Working Voltage Ue	Rated Insulation Voltage Ui	Limiting short-circuit Breaking Ability Icu	Operating short-circuit Breaking Ability Ics	Outline Dimension (WxLxH) mm
Frame Current Inm	Model	Pole	Rated Current In (A)	Rated Working Voltage Ue	Rated Insulation Voltage Ui	400VAC	400VAC	Outline Dimension (WxLxH) mm
63A	CM1-63L	3P	6 10 16 20 25 32 40 50 63	AC 400V	AC 690V	25KA	18KA	78x135x73.5
	CM1-63M	3P				50KA	35KA	78x135x81.5
	CM1-63	4P				50KA	35KA	103x135x81.5
100A	CM1-100	2P	10 16 20 25 32 40 50 63 80 100	DC 250V AC 400V	AC 690V	50KA	35KA	65x150x86
	CM1-100C	3P		AC 400V		25KA	18KA	92x150x68
	CM1-100L			AC 400V		35KA	22KA	92x150x68
	CM1-100M			AC 400V AC 690V		50KA	35KA	92x150x86
	CM1-100H			AC 400V		85KA	50KA	92x150x86
	CM1-100	4P		AC 400V		50KA	35KA	122x150x86
160A	CM1-160C	3P	100 125 140 160	AC 400V	AC 690V	25KA	18KA	107x165x86
	CM1-160L			AC 400V		35KA	25KA	107x165x86
	CM1-160M			AC 400V AC 690V		50KA	35KA	107x165x103
	CM1-160H			AC 400V		85KA	50KA	107x165x103
	CM1-160	4P		AC 400V		50KA	35KA	142x165x103
225A	CM1-225	2P	100 125 140 160 180 200 225	DC 250V AC 400V	AC 690V	50KA	35KA	75x165x103
	CM1-225C	3P		AC 400V		25KA	18KA	107x165x86
	CM1-225L			AC 400V		35KA	25KA	107x165x86
	CM1-225M			AC 400V AC 690V		50KA	35KA	107x165x103
	CM1-225H			AC 400V		85KA	50KA	107x165x103
	CM1-225	4P		AC 400V		50KA	35KA	142x165x103
250A	CM1-250L	3P	180 200 225 250	AC 400V	AC 690V	50KA	35KA	107x165x103
	CM1-250M			AC 400V AC 690V		65KA	42KA
	CM1-250H			AC 400V		100KA	65KA
	CM1-250	4P		AC 400V		65KA	42KA	142x165x103
400A	CM1-400C	3P	225 250 315 350 400	AC 400V	AC 690V	35KA	25KA	150x257x106.5
	CM1-400L			AC 400V		50KA	35KA
	CM1-400M			AC 400V AC 690V		65KA	42KA
	CM1-400H			AC 400V		100KA	65KA
	CM1-400	4P		AC 400V		65KA	42KA	198x257x106.5
630A	CM1-630C	3P	400 500 630	AC 400V	AC 690V	35KA	25KA	182x270x110
	CM1-630L			AC 400V		50KA	35KA
	CM1-630M			AC 400V AC 690V		65KA	42KA
	CM1-630H			AC 400V		100KA	65KA
	CM1-630	4P		AC 400V		65KA	42KA	240x270x110
800A	CM1-800M	3P	630 700 800	AC 400V AC 690V	AC 690V	75KA	50KA	210x280x115.5
	CM1-800H	3P		AC 400V		100KA	65KA	210x280x115.5
	CM1-800	4P		AC 400V		75KA	50KA	280x280x115.5
1250A	CM1-1250	3P	800 1000 1250	AC 400V	AC 690V	80KA	40KA	450x280x137
1600A	CM1-1600	3P	1000 1250 1400 1600	AC 400V	AC 690V	80KA	40KA	450x280x137

Red Copper 4P Molded Case 100kA MCCB Circuit Breaker

FAQ:

Q1. What advantages do you have?

A1. We are the direct Manufacturer in Wenzhou China since 2000, we have professional in

developing, marketing & production team to offer you the most competitive price and best service.

Q2. What’s your main product?

A2. We have circuit breaker(MCB, RCCB, RCBO,MCCB,ACB) and Ac Contactor and Thermal Overload Relay and Magnitic Starter(DOL); Votlatge Regulator;Distribution Case...

Q3. Could you print our own logo?

A3. Yes, Our company are available for Retail & Wholesale & OEM & ODM.

Q4. How long is the quality guarantee?
A4. 18 month warranty, our products are 100% inspection.

Q5. How long is the deliver time?

A5. It usually takes about 5-7 working days for sample order and 10 - 25 days for big order.

Q6. What is your payment terms?
A6. Our Payment term is T/T, PayPal, L/C at sight.

Q7. Any certification of your company or product?

A7.We have ISO 9001, CE, CB, SEMKO, SAA, TUV ...
