Airports 120V Sontuoec MCB Din Rail Circuit Breaker

WENZHOU SANTUO ELECTRICAL CO.,LTD.
Contact Now
    Buy cheap Airports 120V Sontuoec MCB Din Rail Circuit Breaker from wholesalers

    Buy cheap Airports 120V Sontuoec MCB Din Rail Circuit Breaker from wholesalers
    • Buy cheap Airports 120V Sontuoec MCB Din Rail Circuit Breaker from wholesalers

    Airports 120V Sontuoec MCB Din Rail Circuit Breaker

    Ask Lasest Price
    Brand Name : SONTUOEC ,WZSTEC
    Model Number : BH-W
    Certification : CE
    Price : Negotiable
    Supply Ability : 10000PCS/DAY
    Delivery Time : 25DAYS
    • Product Details
    • Company Profile

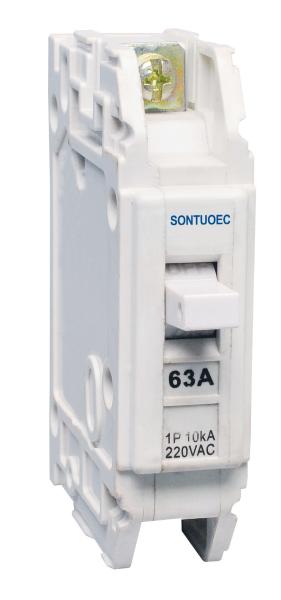

    Airports 120V Sontuoec MCB Din Rail Circuit Breaker


    SONTUOEC white Color BH THQL THQC MCB electrical breakers Plug-in MCB


    Products Description

    1. Application

    BH-W series is applicable to branching circuit breakers,They are for power distribution boards, and products compatible for affixation to DIN rails are also available. Widely used in guesthouses, block of flats, high buildings, squares, airports, railway stations, plants and enterprises etc, in AC circuits 240V (single pole)up to 415V (3 pole) 50Hz for protection of overload short circuit and for circuit change-over in lighting system. Breaking capacity is 3KA. The items comply with IEC60898 standard.
    Standard
    IEC60898; IEC60947.2
    Number of Poles
    1P, 2P, 3P,4P
    Rated Current (A)

    6, 10, 15, 20, 25, 30, 40, 50, 60, 70, 80, 90, 100
    Breaking Capacity (A)
    3000
    Rated Voltage (V)
    110/220 (1P), 240/415 (2P), 415 (3P)
    Rated Frequency
    50/60Hz
    Electrical Life (Times)
    no less than 6000 operations
    Mechanical Life (Times)
    (O-C) no less than 16000 operations
    Airports 120V Sontuoec MCB Din Rail Circuit Breaker
    FAQ

    Q1:Can I have a sample for testing?

    A:Yes, we can offer free sample, but you should afford the shipping cost.


    Q2:Can I add my logo on the products?

    A:Yes,OEM and ODM are available for us.


    Q3:How can i get the after-service?

    A: We will send you the free spare parts if the problems caused by us. If the products can not repair, we will send you new free quantity together with next order.


    Q4:Do you have inspection procedures for products?

    A: our products100% self-inspection and testing before packing.


    Q5:Can I have a visit to your factory before the order?

    A:Sure,welcome to visit our factory.

    Here is our factory address: Liushi Town, Yueqing,Wenzhou, Zhejiang Province.

    Our factory is near Ningbo port, and we can pick you up in the airport, Hotel booking service is available


    Q6:How about delivery time of the order?

    A: Usually within 25 days after obtaining deposit.


    Q7:How about payment Iterms?

    A: 30% deposit, the rest payment balance should be paid against B/L.

    Quality Airports 120V Sontuoec MCB Din Rail Circuit Breaker for sale
