Din Rail Lighting Sontuoec 2P 63A RCBO Circuit Breaker

WENZHOU SANTUO ELECTRICAL CO.,LTD.
Contact Now
    Buy cheap Din Rail Lighting Sontuoec 2P 63A RCBO Circuit Breaker from wholesalers

    Buy cheap Din Rail Lighting Sontuoec 2P 63A RCBO Circuit Breaker from wholesalers
    • Buy cheap Din Rail Lighting Sontuoec 2P 63A RCBO Circuit Breaker from wholesalers
    • Buy cheap Din Rail Lighting Sontuoec 2P 63A RCBO Circuit Breaker from wholesalers

    Din Rail Lighting Sontuoec 2P 63A RCBO Circuit Breaker

    Ask Lasest Price
    Brand Name : SONTUOEC ,WZSTEC
    Model Number : STEC-63
    Certification : CE
    Price : Negotiable
    Supply Ability : 3000PCS/DAY
    Delivery Time : 20DAYS
    • Product Details
    • Company Profile

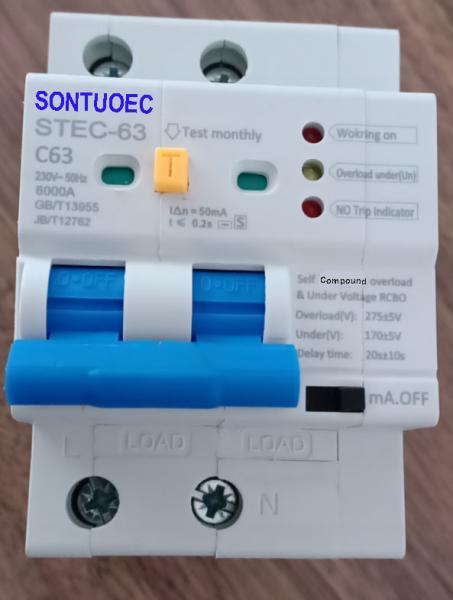

    Din Rail Lighting Sontuoec 2P 63A RCBO Circuit Breaker

    Sontuoec Din Rail Lighting 2P 63A self Compound overload and under voltage type Circuit Breaker RCBO

    Function:

    STEC-63 series self Compound overload and under voltage type Circuit Breaker (RCBO) is mainly used for lighting for building, protection against overload and leakage current protection under AC230V Single phase (2P),400V three phase(4P),it also has the other function of Self Compound Overload and Under Voltage Protection; rated current from 10A to 63A. It also can be used for non-frequent on and off switch operation under normal circumstance.
    Technical Data
    Model type
    STEC-63
    Standard
    IEC61009-1
    Poles
    2P, 4P
    Rated current In(A)
    10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
    Rated working voltage Ue(AC,V)
    AC230V/400V ; 240/415V
    Leakage Current(mA)30mA; 100mA; 300mA
    Breaking Capacity(kA)6KA
    Rated Frequency(Hz)
    AC50Hz/60Hz
    Reset Time
    20s+(-)10s
    Installation
    Din Rail installation
    Tripping Time(Limited Current)
    Less 60s


    FAQ:


    Q1. What advantages do you have?

    A1. Our team work on Circuit Breaker more than 20years experience, we have professional in

    developing, marketing & production team to offer you the most competitive price and best service.

    Q2. What’s your main product?

    A2. We have two product project, low voltage Circuit Breaker and Ac Contactor items.

    Q3. Could you print our own logo?

    A3. Yes, usually, we print our own's brand:SONTUOEC, WZSTEC , and also accept OEM .

    Q4. How long is the quality guarantee?
    A4. 18months warranty, our products are 100% inspection.

    Q5. How long is the deliver time?

    A5. It usually takes about 3 - 5 working days for sample order and 15 - 25 days for normal orders.

    Q6. What is your payment terms?
    A6. Our Payment term is T/T, Aliexpress, PayPal, L/C at sight.
