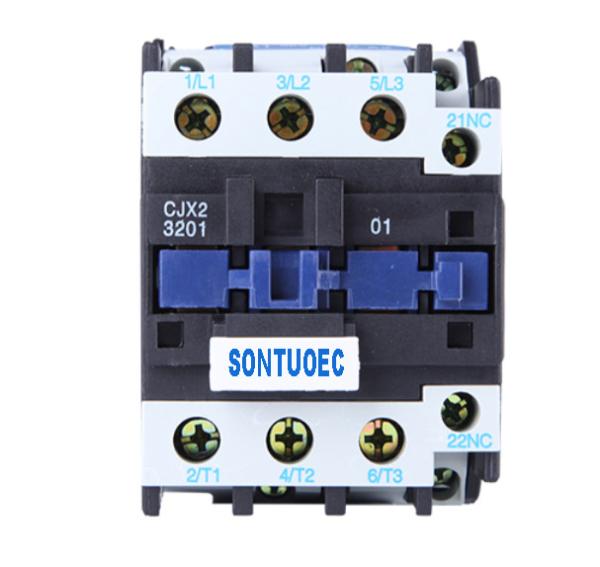

Din Rail Sontuoec 440V 32A Magnetic AC Contactor

WENZHOU SANTUO ELECTRICAL CO.,LTD.
Contact Now
    Buy cheap Din Rail Sontuoec 440V 32A Magnetic AC Contactor from wholesalers

    Buy cheap Din Rail Sontuoec 440V 32A Magnetic AC Contactor from wholesalers
    • Buy cheap Din Rail Sontuoec 440V 32A Magnetic AC Contactor from wholesalers

    Din Rail Sontuoec 440V 32A Magnetic AC Contactor

    Ask Lasest Price
    Brand Name : SONTUOEC , WZSTEC
    Model Number : LC1-D , CJX2
    Certification : CE
    Price : Negotiable
    Supply Ability : 5000pcs/day
    • Product Details
    • Company Profile

    Din Rail Sontuoec 440V 32A Magnetic AC Contactor

    SONTUOEC Professional LC1-D(CJX2)series Type Manufacturer 32A AC Contactor Magnetic

    LC1-D Series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-1.

    APPLICATION
    LC1-D AC Contactor is suitable for using in the circuits up to the rated voltage 660v, AC 50hz or 60hz, rated current up to 95A, for making , breaking frequently starting &machine-interlocking device etc,it becomes the dalay contactor, mechanical interlocking contactor,star-delta starter.with the thermal relay, it is combined into the electromagnetic starter.The contactor is produced according to IEC947-2,VDE0660&BS5442

    SPECIFICATION
    Type
    LC1-D09
    LC1-D12
    LC1-D18
    LC1-D25
    Rated workingcurrent (A)
    AC3
    9
    12
    18
    25
    AC4
    3.5
    5
    7.7
    8.5
    Standardpower ratingsof 3-phase motors 50/60Hz incategory AC-3
    220/230V
    2.2
    3
    4
    5.5
    380/400V
    4
    5.5
    7.5
    11
    415V
    4
    5.5
    9
    11
    500V
    5.5
    7.5
    10
    15
    660/690V
    5.5
    7.5
    10
    15
    Rated heat current (A)
    20
    20
    32
    40
    Electrical life
    AC3 (x104)
    100
    100
    100
    100
    AC4 (x104)
    20
    20
    20
    20
    Mechanical life (x104)
    1000
    1000
    1000
    1000
    Number of the contacts
    3P+NO
    3P+NC
    Type
    LC1-D32
    LC1-D40
    LC1-D50
    LC1-D65
    LC1-D80
    LC1-D95
    Rated workingcurrent (A)
    AC3
    32
    40
    50
    65
    80
    95
    AC4
    12
    18.5
    24
    28
    37
    44
    Standardpower ratingsof 3-phase motors 50/60Hz incategory AC-3
    220/230V
    7.5
    11
    15
    18.5
    22
    25
    380/400V
    15
    18.5
    22
    30
    37
    45
    415V
    15
    22
    25
    37
    45
    45
    500V
    18.5
    22
    30
    37
    55
    55
    660/690V
    18.5
    30
    33
    37
    45
    55
    Rated heat current (A)
    50
    60
    80
    80
    125
    125
    Electrical life
    AC3 (x104)
    80
    80
    60
    60
    60
    60
    AC4 (x104)
    20
    15
    15
    15
    10
    10
    Mechanical life (x104)
    800
    800
    800
    800
    600
    600
    Number of the contacts
    3P+NC+NO
    Standard Control Circuit Voltage
    Volts
    24
    42
    48
    110
    220
    230
    240
    380
    400
    50Hz
    440
    500
    600
    50Hz
    B5
    D5
    E5
    F5
    M5
    60Hz
    U5
    Q5
    V5
    N5
    R5
    S5
    Y5
    60Hz
    B6
    50/60Hz
    E6
    F6
    M6
    -
    U6
    Q6
    -
    -
    R6

    Din Rail Sontuoec 440V 32A Magnetic AC Contactor

    Din Rail Sontuoec 440V 32A Magnetic AC Contactor

    Din Rail Sontuoec 440V 32A Magnetic AC ContactorDin Rail Sontuoec 440V 32A Magnetic AC Contactor

    FAQ

    Q1:If I'm interested in your product when I can receive your quotation and detail information after send the enquiry?

    A:All your enquiry will be replied in 8hours.

    Q2:Can I get a sample before the order because I really don't how is your product quality?

    A:Of course! We also think sample order is the best way to build the trust.And in our company we offer free sample service! Please send the enquiry to us and get the free sample!

    Q3:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?

    A:Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.

    Q4:I need your price list of all your products, do you have a price list?

    A:We do not have a price list of all of our products. Because we have so many items, and it is impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
