| Brand Name : | SONTUOEC ,WZSTEC |
| Model Number : | STID-63 |
| Certification : | CE, CB ,ISO9001 |
| Price : | Negotiable |
| Supply Ability : | 5000PCS/DAY |
| Delivery Time : | 25DAYS |

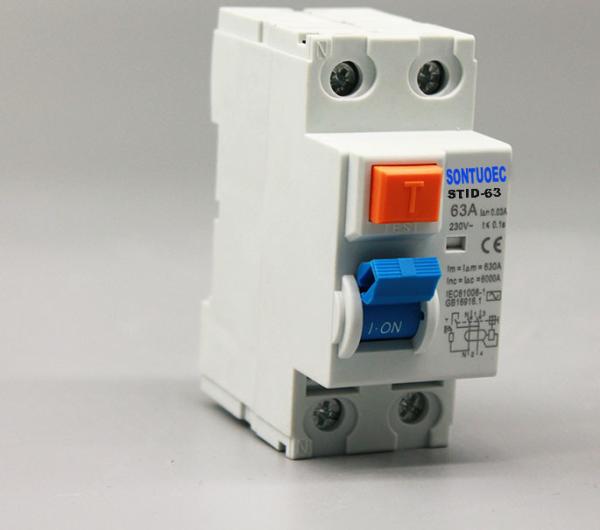

SONTUOEC 63A 30mA ID RCD Residual Current Circuit breakers electromagnetic 2P ,4P ELCB earth leakage circuit breaker
STID-63 Series SONTUOEC leakage current circuit breaker is in conformity with the standards of IEC61008.1.It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.It can be used in circuits up to single phase 230V,three phase 400V,50 or 60Hz.
Technical Data:
| Electrical Feature | Standard | IEC61008-1 | |
| Type(wave form of the earth leakage sensed) | AC,A | ||
| Rated current In | A | 16,25,40,63 | |
| Poles | P | 2,4 | |
| Rated voltage Ue | V | 230/400 | |
| Rated sensitivity I n | A | 0.03,0.1,0.3 0.5 | |
| Insulation voltage Ui | V | 500 | |
| Rated residual making and | A | 500(In=25A/40A) | |
| breaking capacity I m | 630(In=63A) | ||
| Short-circuit current I c | A | 6000/10000 | |
| SCPD fuse | A | 10000 | |
| Break time under I n | s | <0.1 | |
| Rated frequency | Hz | 50/60 | |
| Rated impulse withstand voltage(1.2/50)Uimp | V | 6000 | |
| Dielectric test voltage at ind Freq for 1 min | kV | 2.5 | |
| Pollution degree | 2 |
| MechanicaI features | Electrical life | t | 4000 |
| MechanicaI Iife | t | 20000 | |
| Fault current indicator | Yes | ||
| Protection degree | IP20 | ||
| Ambient temperature | C | -5~+40 | |
| (with daily average 35 ) |
