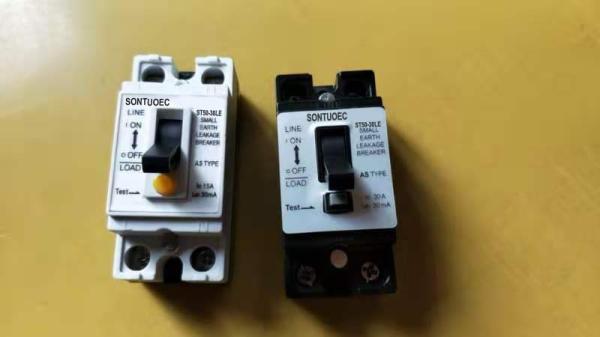

SAFETY Switch SONTUOEC NT50 circuit breaker 32 amp MCB ,ELCB manufactory
General
SONTUOEC Series NT-50 series MCB , excellent quality, beautiful
appearance, small volume, and gorgeous color matching., the product
is used as a protection switch for power supplying a circuit with
AC 50/60Hz. Voltage 230V, current up to 32A, it has inherent
overload protection function. Combined with a fuse, it can also
provide short circuit protection for a circuit. Besides, it can
infrequently make and break a loaded circuit. It is especially
suitable for lighting devices in houses and public places, or a
single electric appliance such as refrigerator, etc. It conforms
with the standards of IEC60898.
Specifications
| Main technique parameters | ||
| Grame lever rated current | Inm (A) | 32 |
| POLE | 2P1E/2P2E | |
| Rated Voltage | Un(V) | 110/230 |
| Rated frequency | (HZ) | 50,60 |
| Rated current | In(A) | 5,10,15,20,25,30 |
Rated Leakage Current: 30mA,100mA
|
