| Brand Name : | SONTUOEC, WZSTEC |
| Model Number : | S-N95 |
| Certification : | CE |
| Price : | Negotiable |
| Supply Ability : | 5000pcs/day |

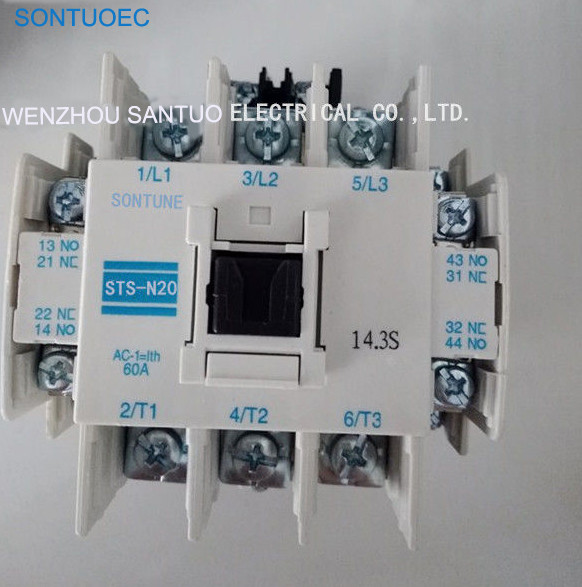

Magnetic contactor S-N95 CE Certified S-N series AC model QA copper wire Flame retardant
S-N(STS-N /STS-K) Series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-1.
SPECIFICATION
| Type | S-N10 | S-N11 | S-N12 | S-N18 | S-N20 | S-N21 | S-N25 | S-N35 | S-N50 | S-N65 | S-N80 | S-N95 |
| Rated operating current in220V(A) | 11 | 13 | 13 | 18 | 22 | 22 | 30 | 40 | 50 | 65 | 85 | 105 |
| Rated operating current in380V(A) | 9 | 12 | 12 | 16 | 22 | 22 | 30 | 40 | 50 | 62 | 85 | 85 |
| Rated operating current in660V(A) | 5 | 7 | 7 | 9 | 9 | 9 | 12 | 17 | 26 | 35 | 52 | 65 |
| Controlled motor at 220V | 2.5 | 3.5 | 3.5 | 4 | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 |
| Power under at380V | 4 | 5.5 | 5.5 | 6 | 11 | 11 | 15 | 18.5 | 22 | 30 | 45 | 55 |
| AC-3(KW) at660V | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 22 | 30 | 45 | 55 |
| Coil consumption at rated coil voltage | 3.5 | 3.5 | 3.5 | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 2.8 | 2.8 | 3.3 | 3.3 |
| Rated frequency of opertation Ops/hr | 1800 | 1200 | ||||||||||
| Electric life under AC-3 | 1x106 | |||||||||||
