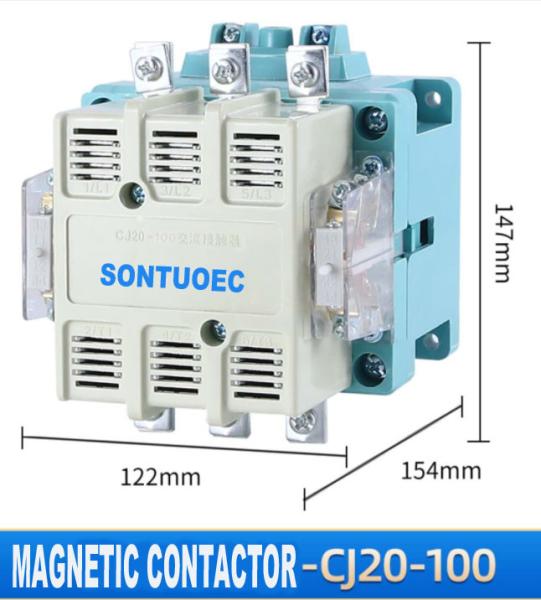

IEC 60947 CJ20 Series 175kw 630A Magnetic Contactor

AC magnetic Contactor CJ20 Electrical Power

Application:

CJ20 series AC contactor is used in power system of 50HZ(or 60HZ)with rated working voltage to 660V, rated current 10A to 630A for remoting frequent switch on and off circuit. and with appropriate thermal relay or electronic protection device are combined into a circuit of electromagnetic starter which can protect overloading circuit.Our products meet GB14048 4 and lEC60947-41 standard.

Normal installation conditions and woking conditions:

1. the location of the installation elevation can not exceed 20002. the upper limit temperature of the air around the should be not more than+40℃, lower limit is-5℃;
3. The relative humidity around the installation site at the maximum temperature of +40C is not more than%, the relative humidity at lower temperatures can be higher, the average minimum temperature at the wettest can not be more than +20'C and the maximum relative humidity can not be more than 90%, We also should pay attention to the el occurred because o the change of temperature;
4. installation tilt with the verticaliS less than +5°;
5. pollution degree:3;
6. It should be installed in the absence af significant shake, shock and vibration.

Specification

Type	Rated insulation voltage (V)	Rated thermal current (A)	Control power under AC-3 use category Pe Kw
Type	Rated insulation voltage (V)	Rated thermal current (A)	220V	380V	660V	1140V
CJ20-10	690	10	2.2	4	4	-
CJ20-16		16	4.5	7.5	11	-
CJ20-25		32	5.5	11	13	-
CJ20-40		55	11	22	22	-
CJ20-63		80	18	30	35	-
CJ20-100		125	28	50	50	-
CJ20-160		200	48	85	85	-
CJ20-160/11	1140	200	-	-	-	85
CJ20-250	690	315	80	132		-
CJ20-250/06		315	80	132	190	-
CJ20-400		400	115	200	220	-
CJ20-630		630	175	300	-	-
CJ20-630/06		630	175	300	350	-
CJ20-630/11	1140	400	-	-	-	400
