Electronic Circuit breaker STRO6-63LE Residual Current Circuit Breaker With Overcurrent Protection RCBO 30ma A type
APPLICATION
STRO6-63LE series residual current circuit breaker with overload
current protection is applied in the power system of AC 50Hz,
single phase 230V, three phases 400V, rated current 63A. The RCBO
also can protect the circuit against current leakage, over load,
short circuit etc. And extra protection function like over voltage
can be added according to customers' request. It mainly used as
building lighting and power distribution protection.
STRUCTURE
STRO6-63LE series earth leakage circuit breaker is composed of high
breaking mini circuitbreaker and current leakage release. The RCBO
is current electronic current leakage circuit breaker, the main
parts include zero sequence current transformer, electronic panel,
current leakage release and the circuit breaker with protection
functions of over load, short circuit.
| Sandard | IEC/EN61009.1 | ||
| Electrical features | Type(wave form of the earth leakage sensed) | Electronic type | |
| Rated current In | A | A,AC | |
| Poles | P | 2,4 | |
| Rated voltage | V | AC 230/400 | |
| Rated Current : | 10,16,20,25,32,40,63A | ||
| Rated sensitivity I△n | A | 0.01,0.03,0.1,0.3,0.5 | |
| Curve type: | V | B(3-5In), C(5-10In),D (10-50In) | |
| Rated residual making and breaking capacity I△m | A | 630 | |
| Short-circuit current I△c | A | 6000 | |
| SCPD fuse | A |
| |
| Rated frequency | Hz | 50/60 | |
| Pollution degree | 2 | ||
| Mechanical features | Electrical life | t | 4000 |
| Mechanical life | t | 10000 | |
| Protection degree | IP20 | ||
| Ambient temperature (with daily average ≤35℃) | ℃ | -25~+40 | |
| Storage temperature | ℃ | -25~+70 | |
| Installation | Terminal connection type | Cable/U-type busbar/pin-type busbar | |
| Terminal size top/bottom for cable | mm2 | 25 | |
| AWG | 18-3 | ||
| Terminal size top/bottom for busbar | mm2 | 25 | |
| AWG | 18-3 | ||
| Tightening torque | N*m | 2.5 | |
| In-lbs | 22 | ||
| Mounting | On DIN rail EN 60715(35mm)by means of fast clip device | ||
| Connection | From top and bottom | ||
Specifications:
1. RCBO with rated sensitivity up to 500mA could beused as supplementary protecting device in case other protecting device faikls its protection against electric shock.
2. RCBO designed for household installation and other similar application, is for non-professional operation, and no maintenance is required.
3. RCBO provides no protection against electric shock from direct contact of both protected lines, or leakage current between these two lines.
4. Particular devices such as surge protective devices, surge arrester ets are recommended to install at upstream line to RCBO as precaution against potential surge voltage and current occurring at its power input side.
5. Satisfying conditions and applications as mentioned above, RCBO with “ON-OFF” indicating device is considered suitable for isolation funciton.
6. RCBO overcurrent protection value is fixed and is not subject to further adjustment.
1. Provides protecting against earth fault/leakage current,short-circuit,overload, and function of isolation
2. Contact position indication
3. Provides protection against indirect contact by human body
4. Provides complementary protection against direct contact by human body.
5. Effectively protects electric equipment against insulating failure.
6. Equipped with switched neutral and phase pole
7. Provides protection against over-voltage
8. Provides comprehensive protection to household and commercial systems.

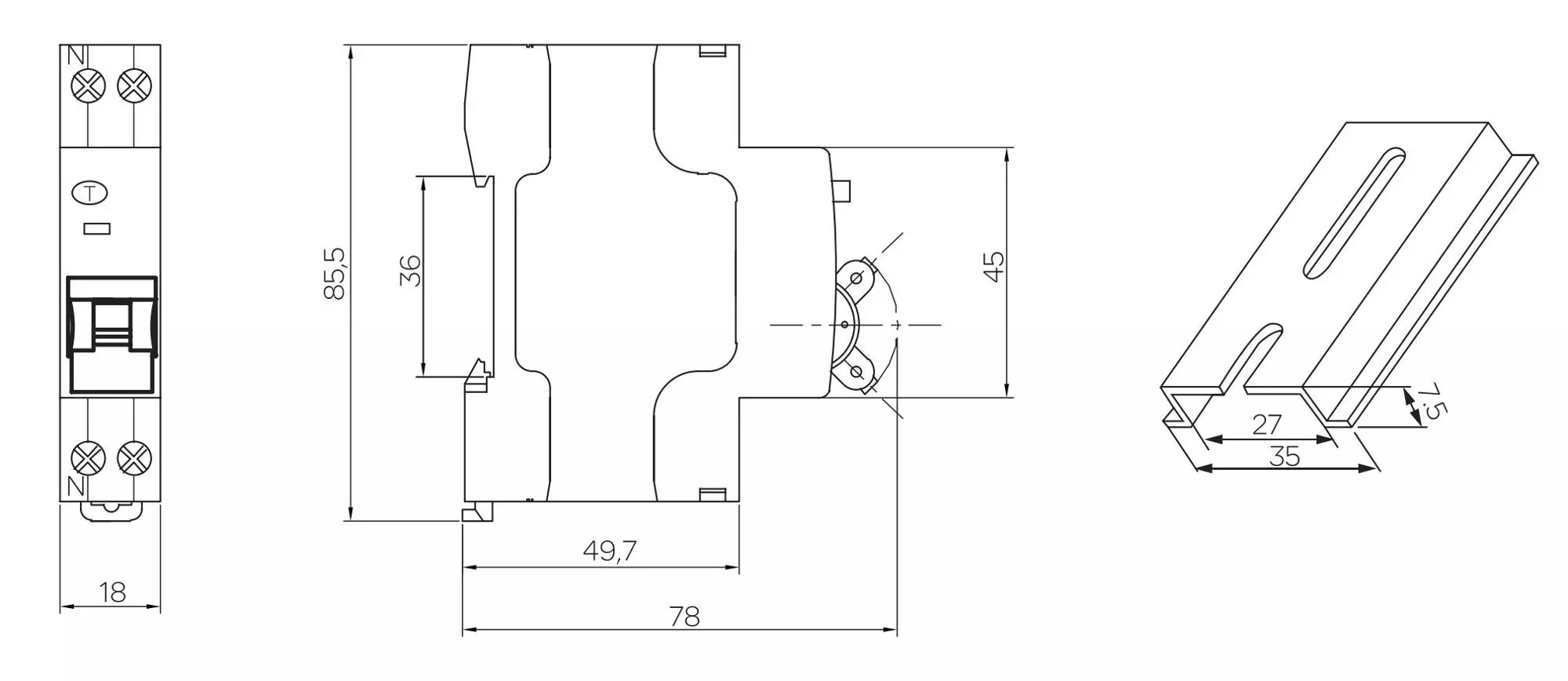

Installation:
