| Brand Name : | SONTUOEC |
| Model Number : | DZ47LE-63 |
| Certification : | CE, ISO9001 |
| Price : | Negotiable |
| Supply Ability : | 3000PCS/DAY |
| Delivery Time : | 15DAYS |

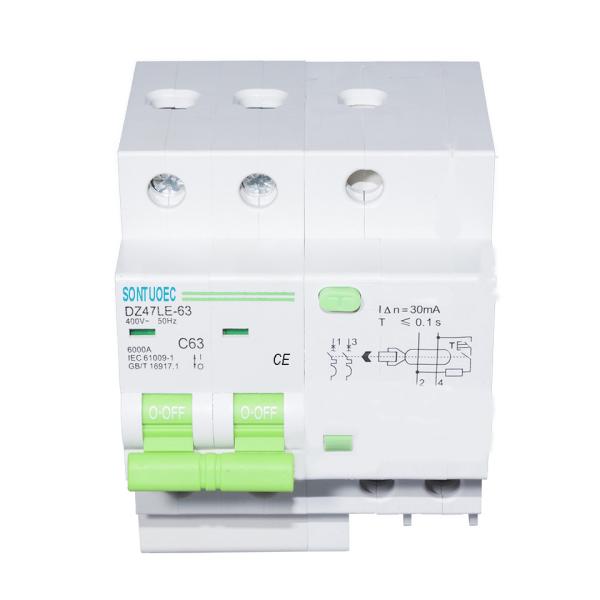

ELCB Switch DZ47LE-63LE RCBO 2P+N 63A 6KA RCBO Residual Current Circuit Breaker with Over Current Protection with CE approvals
Application:
The Product serves in the line of AC 50Hz,rated voltage 230V Single
phase, 400v Three phase and rated current up to 63A to
automatically and immediately cut off power supply once someone
suffers from electric shock or leakage current above specified
value.It can effectively protect personal security and avoid the
damage to equipments.
The circuit-breaker can also function as overload and short-circuit
protection and unfrequent changeover of line under normal
condition.
The product is conformity with GB16917.1,IEC61009-1 Standards.
Feature:
1. Without auxiliary power supply,the product is designed with
strong immunity and extending protection range against residual
current.
2. With higher rated ultimate short circuit,up to 6KA.
3. Reliable,accurate and convenient adjustment of product
instantaneous action is ensured.
4. Service life of product has been greatly enhanced through
specially designed tripping mechanism.
| Type | DZ47LE-63 RCBO |
| Number of poles | 1P,1P+N,2P,3P,3P+N,4P |
| Rated Current(In) | 6,10,16, 20, 25, 32A ,40A,50A,63A |
| Rated operating current( In) | 10, 30, 100, 300,500mA |
| Rated Voltage(Un) | AC 230/400 V |
| Residual operating current scope | 0.5In~In |
| Residual current off-time | ≤0.3s |
| Type | A, AC |
| Ultimate short-circuit breaking capacity(Icn) | 4500(4.5KA); 6000A(6KA) |
| Endurance | ≥4000 |
Model : | Electronical type |
Tripping curve: | B,C,D |
| Terminal protection | IP20 |
|
|
