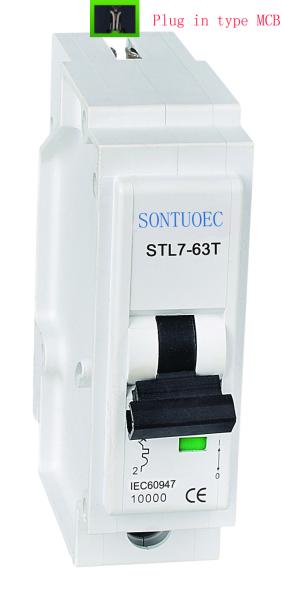

SONTUOEC Brand Plug-in type installing MCB Circuit Breaker with CE approvals
General
STL7-63T series high breaking capacity mini circuit breaker (MCB) protect electrical circuits against overload and shortcircuit
current. They provide ON-OFF switching easily. MCB is applicable to
electric circuits with rated voltage 230/400V AC, frequency 50/60Hz
and rated current up to 63Amp. The product provides protection
against overload and short circuit to electric circuits and
equipments in household and commercial installations. MCB is also
used as non-frequent changeover of electric circuits.
Construction and Feature
♦ Protection against both overload and short circuit
♦ High short-circuit capacity
♦ Applicable to terminal and pin/fork type busbar connection
Technical Data
♦ Pole No:1,2,3,4
♦ Rated voltage:AC 230/400V
♦ Rated current(A):6-63A
♦ Tripping curve:B,C,D
♦ Ultimate short-circuit capacity(lcu):5KA/10KA
♦ Rated frequency:50/60Hz
♦ Energy limiting class:3
♦ Rated impulse withstand voltage:6.2KV
♦ Electro-mechanical endurance:100000
♦ Contact position indication
♦ Connection terminal:
◊ Screw terminal
◊ Pillar terminal with calmp
♦ Connection capacity:Rigid conductor up to 16mm²
♦ Fastening torque:2.0Nm
♦ Installation:
◊ Clips pan assembly base
◊ Panel mounting
♦ Terminal Connection Height:18mm
Specifications
| Model | MCB |
| Pole | 1P,2P,3P,4P |
| Rated Current(In) | 6,10,16,20,32,40,50,63A;15,20,32,40,50,63 A |
| Rated Voltage(Un) | 240/415V |
| Rated Frequency | 50/60HZ |
| Tripping curve | B,C,D |
| Magnetic releases | B curve: between 3and 5 In |
| C curve: between 5and 10In | |
| D curve: between 10 and 14In | |
| Electro-mechanical endurance | over 6000 cycles |
| Breaking Capacity | 10KA (110V); 5KA(240/415V) |
