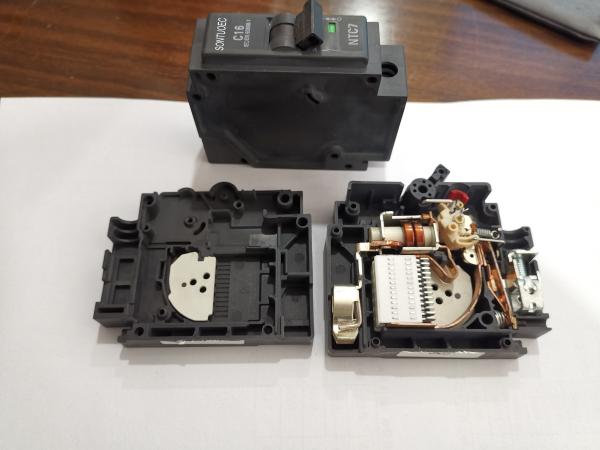

Plug- in mounting MCB Circuit Breaker 6A TO 63A High Breaking Capacity IEC60947.2 Standard comply with southern American market
General
STD7 series high breaking capacity mini circuit breaker (MCB) protect electrical circuits against overload and shortcircuit
current. They provide ON-OFF switching easily. MCB is applicable to
electric circuits with rated voltage 230/400V AC, frequency 50/60Hz
and rated current up to 60Amp. The product provides protection
against overload and short circuit to electric circuits and
equipments in household and commercial installations. MCB is also
used as non-frequent changeover of electric circuits.
The earthing systems,short-circuit current at the circuit breaker installation point,which must always be less than the breaking capacity of this device,network normal voltage.
B curve (3-5In) protection and control of the circuits against length cables in TN and IT systems.
C curve (5-10In) protection and control of the circuits against overloads and short-circuits; protection for resistive and inductive loads with low inrush current.
D curve (10-14In) protection and control of the circuits against overloads and short-circuits; protection for circuits which supply loads with high inrush current at the circuit closing (LV/LV transformers,breakdown lamps.)
Specifications
| Model | STE MCB |
| Pole | 1P,2P,3P,4P |
| Rated Current(In) | 6,10,20,32,40,63A;15,20,30,40,50,63 A |
| Rated Voltage(Un) | 110/120V; 240/415V |
| Rated Frequency | 50/60HZ |
| Tripping curve | B,C,D |
| Magnetic releases | B curve: between 3and 5 In |
| C curve: between 5and 10In | |
| D curve: between 10 and 14In | |
| Electro-mechanical endurance | over 6000 cycles |
| Breaking Capacity | 10KA (110V); 5KA(240/415V) |
