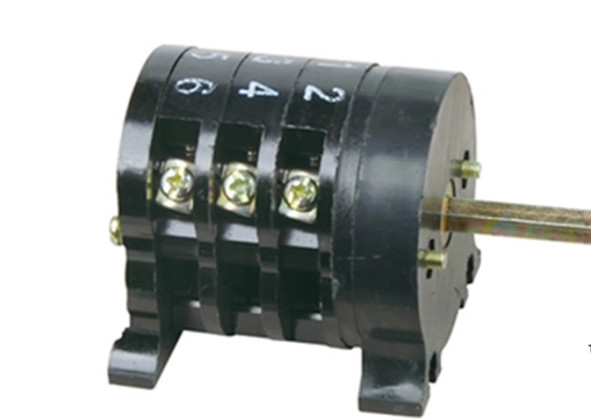

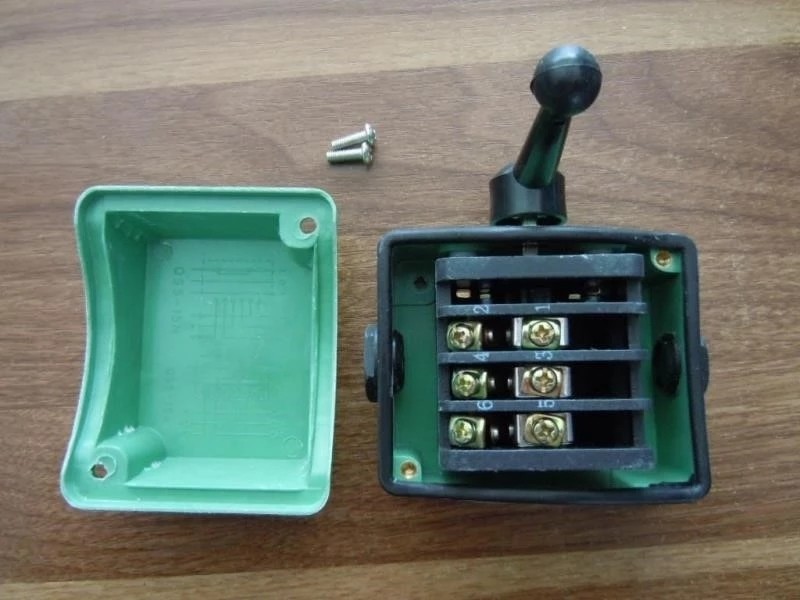

QS5/GZ Motor Appliccation AC 50HZ Cam Starter 500V 7.5KW Capacity Resin or Aluminum material
Application
Cam starter is mainly used to start,stop,forward or backward directly three-phase asynchronous electric motor with AC 50Hz,voltage up to 500V and capacity up to 7.5KW.It can also be used for changeover from one kind of circuit to the other.
Specifications
| Type | Mark | Rated current (A) | Motor control capacity (HP) | Electrical life (times) | Mechanical life (times) | Frequency of operation (per hr) | Applications | Position of lever |
| QS5-15A | I-O | 15 | 5.5 | 100000 | 250000 | 200 | ON-OFF switching | 0-60 |
| QS5-30A | 30 | 10 | ||||||
| QS5-15N | I-O-I | 15 | 5.5 | Forward & reverse | 60-0-60 | |||
| QS5-30N | 30 | 10 | ||||||
| QS5-15P/3 | I-O-2 | 15 | 5.5 | for 3 pole two circuits | 60-0-60 | |||
| QS5-30P/3 | 30 | 10 | ||||||
| QS5-63A | I-O | 63 | 22 | 80000 | 200000 | 180 | ON-OFF switching | 0-60 |
| QS5-100A | 100 | 30 | ||||||
| QS5-63N | I-O-I | 63 | 22 | Forward & reverse | 60-0-60 | |||
| QS5-100N | 100 | 30 | ||||||
| QS5-63P/4 | I-O-2 | 63 | 22 | for 4 pole two circuits | 60-0-60 | |||
| QS5-100P/4 | 100 | 30 | ||||||
| GZ-16 | I-O-2 | 15 | 5.5 | 100000 | 250000 | 200 | for 9 pole & 4 pole two circuits | 60-0-60 |
| GZ-40 | 30 | 10 | ||||||
| GZ-63 | 63 | 22 | 80000 | 200000 | 180 | |||
| GZ-100 | 100 | 30 |
|
|
