| Brand Name : | SONTUOEC ,WZSTEC |
| Model Number : | STD1-63 |
| Certification : | CE |
| Price : | Negotiable |
| Supply Ability : | 2000pcs/day |
| Delivery Time : | 5-8days |
Function:

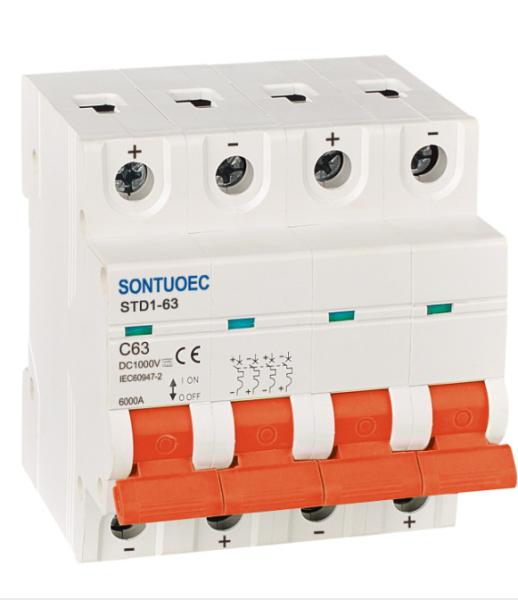

Solar system DC MCB , apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.
Technical Parameter
1.Specialised MCB for DC applications
2.Rated current:2A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
3.Type B and C tripping characteristics (details available on
request)
4.4.5/6kA short circuit capacity (IEC60947)
5.2P 500V DC; 4P 1000VDC
6.Current limiting operation under fault conditions
7.18mm modular width per pole
8.IP20 finger proof terminals
9.Safety terminals ensure that incorrect connection is not possible
10.Terminal capacity up to 35mm
11.High torque terminals up to 4.5Nm
12.Circuit indicator window allowing clear labeling of circuits
13.Suitable for DIN rail mounting;
14.Suitable for installation in consumer units, design units and
MCB distribution boards
15.Toggle is padlockable in "ON" or "OFF" position
16.Wide range of multi-functional accessories
|
|
