| Brand Name : | SONTUOEC ,WZSTEC |
| Model Number : | SBE |
| Certification : | CE |
| Price : | Negotiable |
| Supply Ability : | 2tHIS 000pcs/day |
| Delivery Time : | 15DAYS |

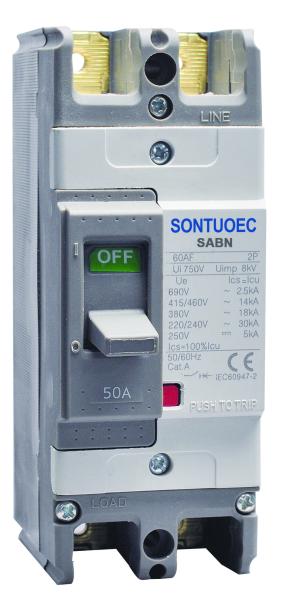

This SBE series MCCB (similar LS series ABE 102b model) 2P molded case circuit breaker is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 100A. It features normal structure reliable performance, high breaking capacity, used for power distribution and protecting the circuit and electrical equipment against overload and short circuit. It complies with the standard of IEC 60947-2.
breaker,schneider electric xld breaker circuit
| Type | Poles | Rated Current In (A) | Ultimate Short Circuit Breaking Capacity(kA), Icu | Uimp(kV) Rated Impulse Withstand Voltage | |||||||
| Ue(DC) | Ue(AC 50/60Hz) | Ui(V) | |||||||||
| 125V | 250V | 220/240V | 380V | 415/460V | 480/500V | 600V | |||||
| 2P | 10,15,20,30,40,50 | 5 | 2.5 | 10 | 7.5 | 5 | 2.5 | 2.5 | 690 | 6 | |
| 3P | 10,15,20,30,40,50 | 5 | 2.5 | 10 | 7.5 | 5 | 2.5 | 2.5 | 690 | 6 | |
| 4P | 10,15,20,30,40,50 | 5 | 2.5 | 10 | 7.5 | 5 | 2.5 | 2.5 | 690 | 6 | |
| 2P | 10,15,20,30,40,50, 60,75,100 | 10 | 5 | 25 | 14 | 10 | 7.5 | 5 | 690 | 6 | |
| 3P | 10,15,20,30,40,50, 60,75,100 | 10 | 5 | 25 | 14 | 10 | 7.5 | 5 | 690 | 6 | |
| 4P | 10,15,20,30,40,50, 60,75,100 | 10 | 5 | 25 | 14 | 10 | 7.5 | 5 | 690 | 6 | |
| 3P | 100,125,150,175,200,225,250 | 15 | 10 | 35 | 18 | 18 | 10 | 7.5 | 690 | 6 | |
| 3P | 250,300,350,400 | 20 | 10 | 35 | 30 | 25 | 18 | 18 | 690 | 6 | |
mccb smar
