| Brand Name : | SONTUOEC |
| Model Number : | STRO-40L |
| Certification : | CE |
| Price : | Negotiable |
| Supply Ability : | 3000PCS/DAYS |
| Delivery Time : | 15DAYS |

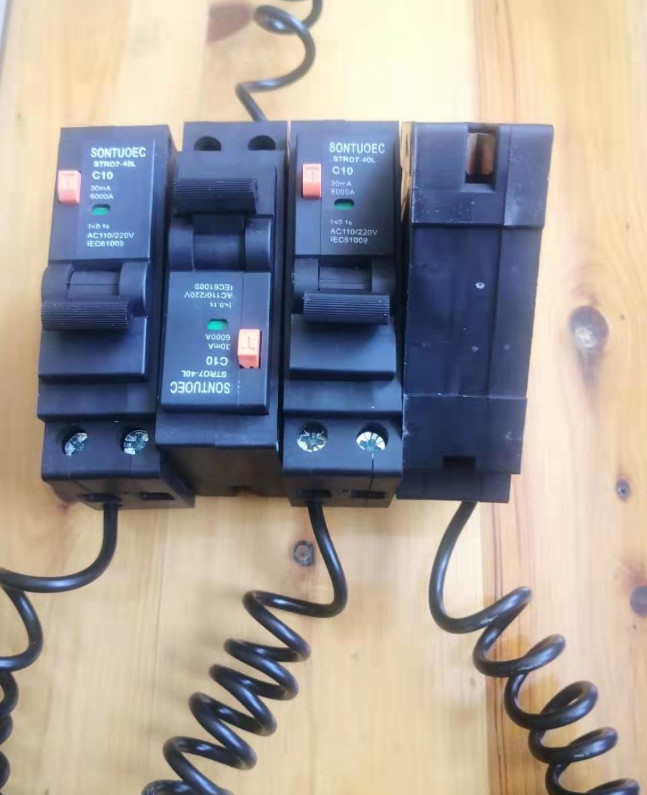

STM7-LE Series residual current circuit breaker with overload current protection is in conformity with the standards of IEC61009.It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.It can be used in circuits up to single phase 230V,three phase 400V,50 or 60Hz.
Normal working & installment conditions
1. Ambient temperature: -5ºC~+40ºC, 24 hours average temperature
not exceed +35ºC.
2. Installment plance altitude: ≤2000m
3. Gas relative humidity:not exceed 50% at +40ºC, higher humidity
allowed at lower temperature.
4. Pollution degree: 2 class
5. Installment condition: Mounted in the place without obvious
impact or shock, no dangerous(explosion) dielectric without
corrosive metal or damaging isolation gas(conductive dust).
6. Installment method: TH35-7.5 mounted rail, can be installed in
distribution board, case or box. Generally mounted vertically.
Tilted angle between mounting face and vertical face not exceed
±5°.
7. Mounted Category: II,III class.
| Sandard | IEC/EN61009-1 | ||
| Electrical features | Type(wave form of the earth leakage sensed) | Electro-magnetic type, electronic type | |
| Rated current In | A | A,AC | |
| Poles | P | 2 | |
| Rated voltage | V | AC 120/240V; 240/415V | |
| Rated Current : | 10,16,20,25,32,40A | ||
| Rated sensitivity I△n | A | 0.01,0.03,0.1,0.3,0.5 | |
| Insulation voltage Ui | V | 500 | |
| Rated residual making and breaking capacity I△m | A | 630 | |
| Short-circuit current I△c | A | 6000 | |
| SCPD fuse | A |
| |
| Rated frequency | Hz | 50/60 | |
| Pollution degree | 2 | ||
| Mechanical features | Electrical life | t | 4000 |
| Mechanical life | t | 10000 | |
| Protection degree | IP20 | ||
| Ambient temperature (with daily average ≤35℃) | ℃ | -25~+40 | |
| Storage temperature | ℃ | -25~+70 | |
| Installation | Terminal connection type | Cable/U-type busbar/pin-type busbar | |
| Terminal size top/bottom for cable | mm2 | 25 | |
| AWG | 18-3 | ||
| Terminal size top/bottom for busbar | mm2 | 25 | |
| AWG | 18-3 | ||
| Tightening torque | N*m | 2.5 | |
| In-lbs | 22 | ||
| Mounting | On DIN rail EN 60715(35mm)by means of fast clip device | ||
| Connection | From top and bottom | ||
