| Brand Name : | SONTUOEC , WZSTEC, SONTUNE |
| Model Number : | SF219G |
| Certification : | CE |
| Price : | Negotiable |
| Supply Ability : | 2000pcs/day |
| Delivery Time : | 15days |

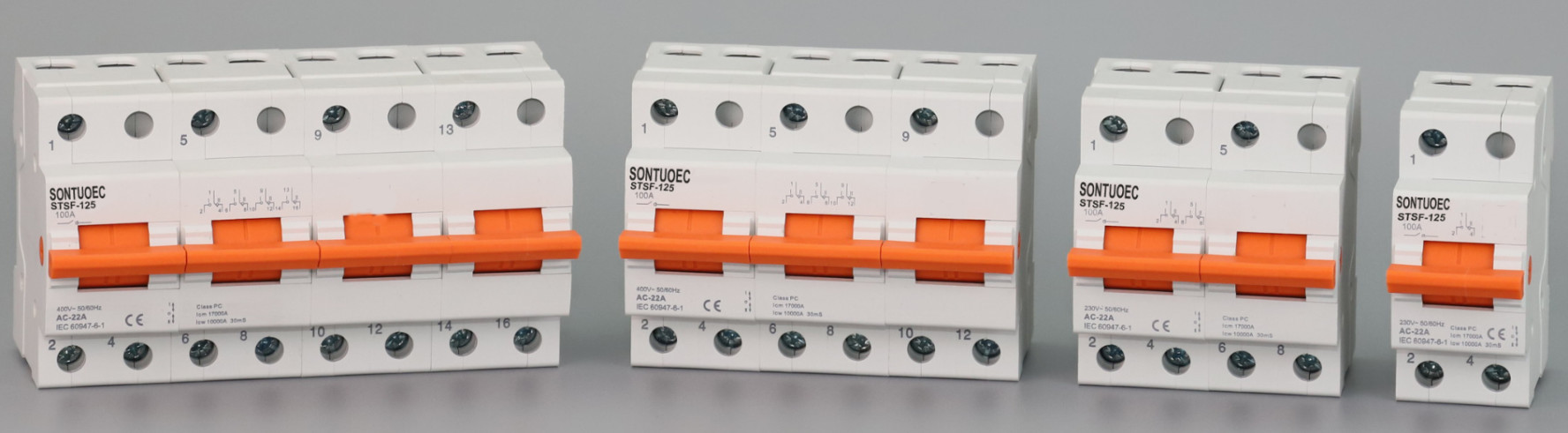

2P:63A SONTUOEC manual 2 ways 4ways types of change over switch mcb moldular switch suppliers
Application:
2 Ways / 4ways Centre-Off changeover switches from 16A to 63A to 125A – 1P, 2P and 4P – manual operated. Their compact design and modular format allows standard DIN rail mount and space saving in the electrical switchboard. Complies with BS EN 60947-3.
The changeover switches connect the critical loads/ circuits, the
main power grid, the generator or an alternate source.
When manually operated, the power flowing to the critical
loads/circuit changes from either the main power grid or generator,
preventing back feed into each other
Wiring Diagrams for the use of changeover switches (I-0-II)with stand-by generators
Stand-by generator or Alternative supply generator: typical location
of manual changeover device with centre “off” position in the main
switch board.
The incoming changeover must be protected with an appropriate
MCB 63A - 6kA - C curve to protect against short circuit and disconnection.
ATS Parameters:
| ITEM | changeover switch :SF219G / SF419G |
| Rated Working Current | 63A ; 125A |
| Rated Working Voltage | 230/ 400V |
| Controling Voltage | AC230V/380V |
| Rated Insulation Voltage | AC690V |
| Transfer Time | ≤2S |
| Frequency | 50/60Hz |
| Operating Model | Manual |
| ATS Level | CE |
| Mechanical Life | 10000 times |
| Electrical Life | 5000 times |
|
|
