SONTUOEC Brand B Type Rccb Residual Current Circuit Breaker Electro-magnetic using charging station for electric vehicle
General:
STID-B RCCB B model is worked on type A and in addition for smooth DC residual currents, residual DC currents that may results from rectifying circuits and high frequency AC residual currents.It protects in the event of contunuous fault current on three phase networks. It usually is used in the field of Recharging Station, Medical Apparatus and Instruments, Controllers and Variable Speed Drives, Batter Charges and Inverters(DC)...STID-B complys with IEC/EN61008 and IEC/EN62423 standards.
Electrical Features
| Mode | Electromagnetic |
| Type(wave form of the earth leakage sensed) | B model |
| Rated current In | 25A,40A,63A |
| Poles | 2P, 4P |
| Rated voltage Ue | 240V/415V~ |
| Insulation voltage Ui | 500V |
| Rated frequency | 50/60Hz |
| Rated residual operation current(I n) | 30mA,100mA, 300mA,500mA |
| Rated residual making and breaking capacity (I m) | 500(In=2540A) 630(In=63A) |
| Short-circuit current Inc= I c | 10000A |
| SCPD fuse | 10000 |
| Break time under I n | ≤0.1s |
| Rated impulse withstand voltage(1.5/50) Uimp | 4000V |
| Dielectric test voltage at ind.Freq. for 1min | 2.5kV |
| Electrical life | 2,000 Cycles |
| Mechanical life | 4,000 Cycles |

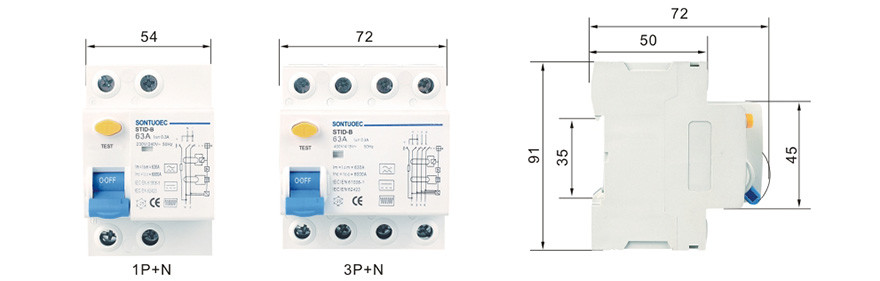

Installation
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature(with daily average≤35℃) | -5℃~+40℃ |
| Storage temperature | -25℃~+70℃ |
| Terminal connection type | Cable/Pin-type busbar/U-type busbar |
| Terminal size top/bottom for cable | 25mm2 18-3AWG |
| Terminal size top/bottom for busbar | 25mm2 18-3AWG |
| Tightening torque | 2.5Nm 22In-lbs |
| Mounting | On DIN rail EN60715(35mm) by means of fast clip device |
| Connection | From top and bottom |
Tripping Current Range
| Lagging Angle | I n>0.01A | I n≤0.01A |
| 0° | 0.35I n≤I≤1.4I n | 0.35I n≤I ≤2I n |
| 90° | 0.25I n≤I≤1.4I n | 0.25I n≤I ≤2I n |
| 135° | 0.11I n≤I≤1.4I n | 0.11I n≤I ≤2In |
| Detectable wave form | Pulsating direct current sensitive | Surge current proof |
| B class Tripping is ensured for sinusoidal AC residual currents pulsed DC residual currents,alternating residual sinusoidal currents up to 1000Hz,pulsating direct residual currents and for smooth direct residual currents,whether applied suddenly or increasing slowly. |  They react to AC and pulsating DC fault current which reach 0 or almost 0 within one time period of the mains frequency. |  RCCB’s surge capacity. Not tripping at standardized 8/20 υs surge-current waves acc.to VDE 0432 Part 2 with surge current values of up to 250A. |
Approvals: CE,CB, SAA, ISO9001
Approvals: CE,CB, SAA, ISO9001; If needed, we can provide testing
report and Approvals for your reference.
|
|
