    6ka Din Rail Type RCBO Circuit Breaker With Overload Current Protection

    Ask Lasest Price
    Brand Name : SONTUOEC , WZSTC
    Model Number : STRO4-40L
    Certification : CE,CB
    Price : RCBO price
    Supply Ability : 3000PCS/DAYS
    Delivery Time : 20DAYS
    • Product Details
    • Company Profile

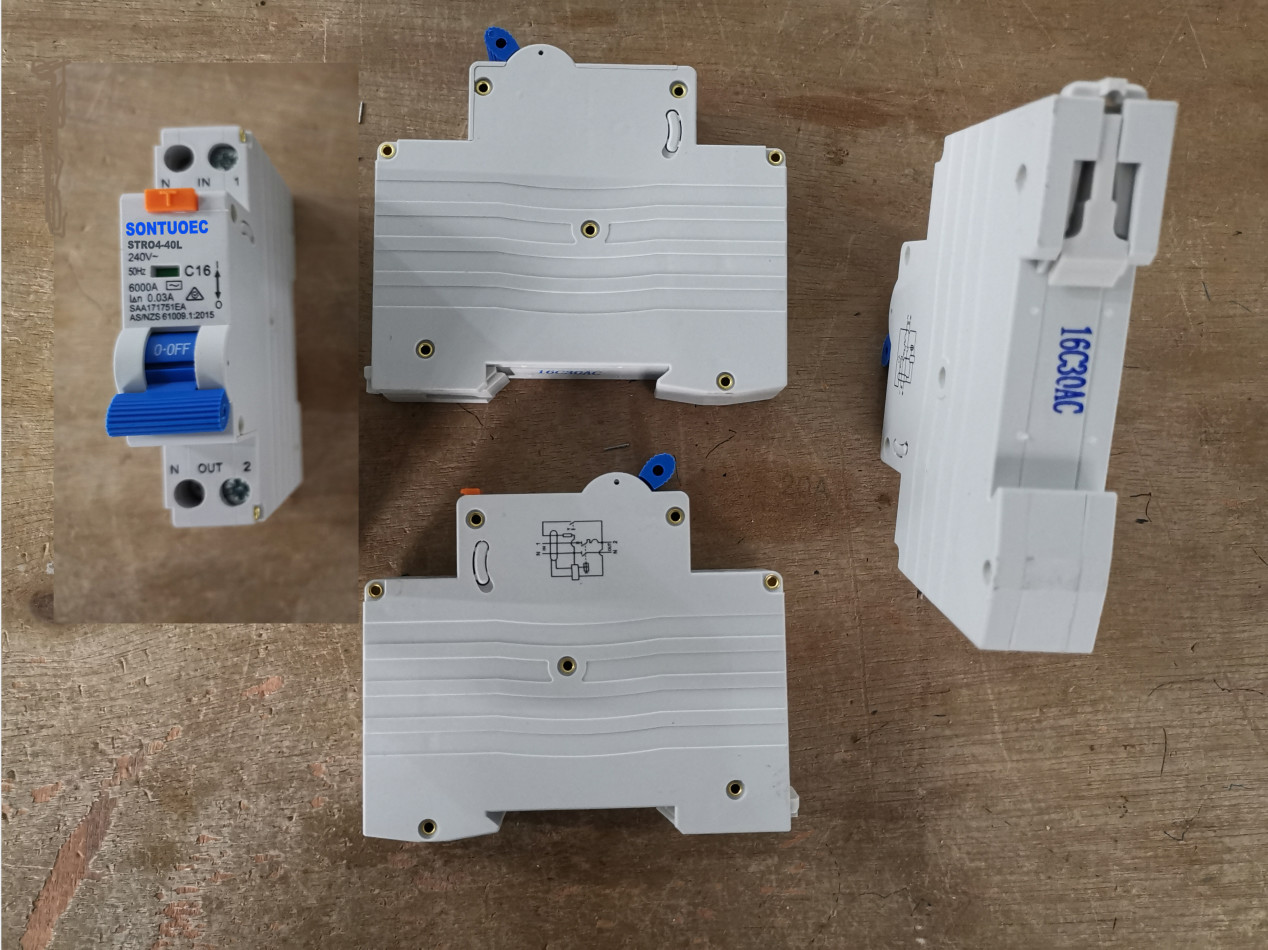

    6ka Din Rail Type RCBO Circuit Breaker With Overload Current Protection

    6KA 18width 1P+N RCBO Din Rail type Residual Current Current Circuit Breaker with overload current protection RCBO

    STRO4-40L series RCBO earth leakage circuit breaker ELCB provide the function of isolation switching and earth leakage protection of electrical circuits.And also provide the indirect protection of the operator's body against the dangerous effects of electric currentof and provide the protection the fire caused by the electrical circuits fault.The rated voltage 230V ,and rated current from 6A to 40A.It complys with IEC/EN61009.1.

    6ka Din Rail Type RCBO Circuit Breaker With Overload Current Protection6ka Din Rail Type RCBO Circuit Breaker With Overload Current Protection

    SandardIEC/EN61009-1
    Electrical
    features
    Type(wave form of the earth leakage sensed)Electronic type
    Rated current InAA,AC
    PolesP1P+N
    Rated voltageVAC 230
    Rated Current :6,10,16,20,25,32,40A
    Rated sensitivity I△nA0.01,0.03,0.1,0.3,0.5
    Insulation voltage UiV500
    Rated residual making and
    breaking capacity I△m
    A630
    Short-circuit current I△cA6000
    SCPD fuseA
    6000
    Rated frequencyHz50/60
    Pollution degree2
    Mechanical
    features
    Electrical lifet4000
    Mechanical lifet10000
    Protection degreeIP20
    Ambient temperature
    (with daily average ≤35℃)
    -25~+40
    Storage temperature-25~+70
    InstallationTerminal connection typeCable/U-type busbar/pin-type busbar
    Terminal size top/bottom for cablemm225
    AWG18-3
    Terminal size top/bottom for busbarmm225
    AWG18-3
    Tightening torqueN*m2.5
    In-lbs22
    MountingOn DIN rail EN 60715(35mm)by means of fast clip device
    ConnectionFrom top and bottom

    6ka Din Rail Type RCBO Circuit Breaker With Overload Current Protection


    6ka Din Rail Type RCBO Circuit Breaker With Overload Current Protection
