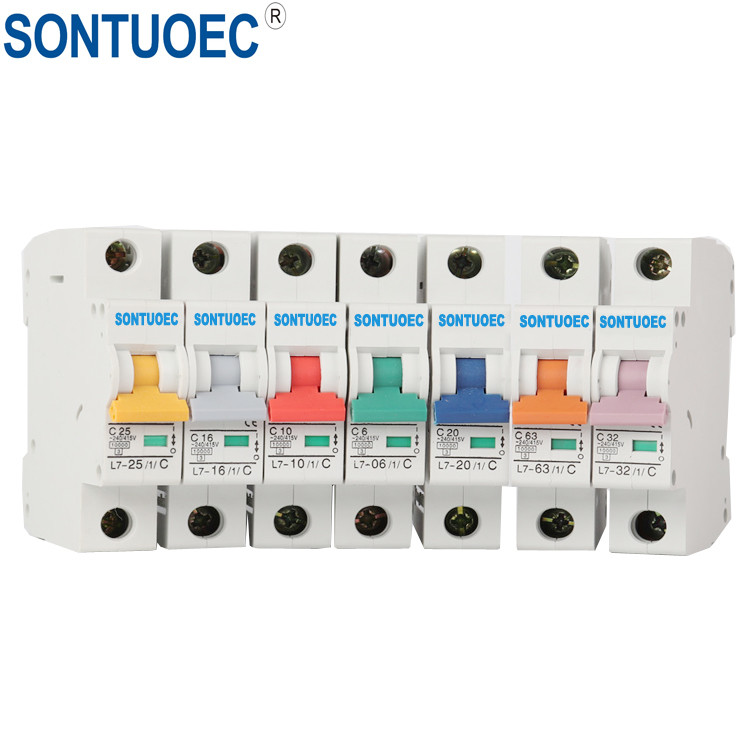

MCB 10KA IEC60898 1P 2P 3P 4P 63 Amp AC or DC Types for L7 circuit breakers home mcb
GENERAL
SNL7 series high breaking capacity mini circuit breaker is used in AC50/60Hz, rated voltage of 230V
3, 4 poles 400V, rated current to 63A for overload and short-circuit protection as well as for unfrequented switching under normal case.It is used extensively for industry, commercial and household.This product conform to IEC60898 standard.
| Standard | IEC/EN 60898-1 | ||
| Electrical features | Rated current In | A | 6,10,16,20,25,32,40,50,63 |
| Poles | P | 1,2,3,4 | |
| Rated voltage Ue | V | 220/380 230/400 240/415 | |
| Insulation voltage Ui | V | 500 | |
| Rated frequency | Hz | 50/60 | |
| Rated breaking capacity | A | 4500/6000/10000 | |
| Rated impulse withstand voltage(1.2/50) Uimp | V | 6000 | |
| Dielectric test voltage at ind. Freq. for 1min | kV | 2 | |
| Pollution degree | 2 | ||
| Thermo-magnetic release characteristic | B,C,D | ||
| Mechanical features | Electrical life | t | 8000 |
| Mechanical life | t | 10000 | |
| Contact position indicator | Yes | ||
| Protection degree | lP20 | ||
| Reference temperature for setting | |||
| of thermal element | C | 30 | |
| Ambient temperature | C | From -5~+40 | |
| (with daily average < 35 ) | |||
| Storage temperature | C | -25~+70 | |
| Installation | Terminal connection type | Cable /Pin-type busbar | |
| Terminal size top /bottom for cable | mm2 | 25 | |
| AWG | 18~3 | ||
| Terminal size top/bottom for busbar | mm2 | 25 | |
| AWG | 18~3 | ||
| Tightening torque | N*m | 2 | |
| ln-Ibs | 18 | ||
| Mounting | On DIN rail EN 60715(35mm)by means fast clip device | ||
| Connection | From top and bottom |
