| Brand Name : | SONTUOEC ,SONTUOC,STUOEC, WZSTEC |
| Model Number : | STM11-125 |
| Certification : | CE |
| Price : | Negotiable |
| Supply Ability : | 10000PCS/DAY |
| Delivery Time : | 20DAYS |

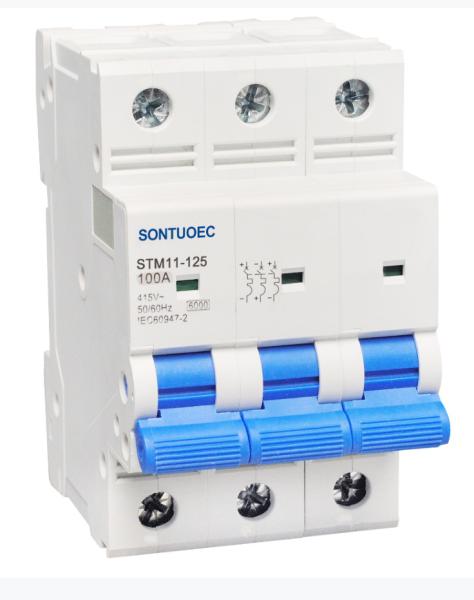

SONTUOEC 3P 100A Mcb Din Rail Miniature Circuit Breaker AC or DC type
General
STM11-125 series high breaking miniature circuit breaker is used in lighting
and motor protection system with protections of short circuit and
over load. It mainly has the features of elegant and small, weight
light, performance good and reliable, breaking capacity high, trip
quickly, DIN installation and the material of shell and parts is
high flameproof and anti-impact plastic ,life long. It is mainly applied in the system
of 50/60Hz,single pole 230V,2,3,4 poles for 400V as over load,
short circuit protection. And under voltage release, shunt release
etc. And it also can be used in the isolation switch as the under
voltage protection and remote distance breaking. It conforms to
IEC60947-2,GB14048.2
This model MCB , size is small (18mm width);rated current is Max :125A
|
|
