| Brand Name : | SONTUOEC ,SONTUOC,STUOEC, WZSTEC |
| Model Number : | MSQ-30; MSQ-40 |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 3000pcs/day |
| Delivery Time : | 15days |

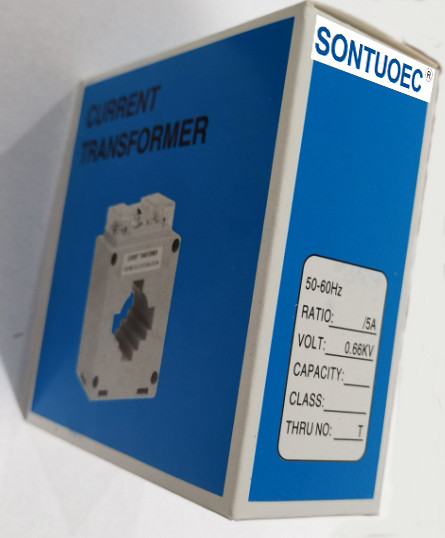

SONTUOEC MSQ-30 30/5A,50/5A current transformer low voltage Measuring current transformer
Description
MSQ Current Transformers are suitable to be applied to test, control, display and record the running of the electrical equipment, in the AC circuit with the rated voltage value below 0.72KV and the frequency of 50-60Hz, mainly used in combination with measure meters like ammeter, watt-hour meter, control relayu etc.
MSQ current transformer :
1. Model:MSQ-30,MSQ-30s,MSQ-40,MSQ-60,MSQ-100,MSQ-130
2. Standard:IEC60044-1
3. Certificate:ISO9001:2000, ISO14001:1996,CE
Specifications
1. Rated current:5/5A-
2. Secondary current :5A.1A
3. Rated voltage:0.72kV
4. Rated frequency:50/60Hz
5. Class of accuracy:0.5~1.0
6. Rated security coefficient :FS<5
7. Ambient Temperature Range:-20 to +80
| Type | Current ratio(A) | Rated power(VA) | Rated | |
| Class:0.5 | Class:1 | Frequency(Hz) | ||
| MSQ-30 | 30/5 | 5 | 5 | 50/60 |
| 40/5 | 5 | 5 | 50/60 | |
| 50/5 | 5 | 5 | 50/60 | |
| 60/5 | 5 | 5 | 50/60 | |
| 75/5 | 5 | 5 | 50/60 | |
| 80/5 | 5 | 5 | 50/60 | |
| 100/5 | 5 | 5 | 50/60 | |
| 150/5 | 5 | 5 | 50/60 | |
| 200/5 | 5 | 5 | 50/60 | |
| 250/5 | 5 | 7.5 | 50/60 | |
| 300/5 | 10 | 10 | 50/60 | |
|
|
