    2 Pole 2NC DIN Rail Household Modular Contactor 25A 63A

    Ask Lasest Price
    Brand Name : SONTUOEC ,WZSTEC
    Model Number : SCH8-25 ; SCH8-63
    Certification : CE
    Price : Negotiable
    Supply Ability : 2000pcs/day
    Delivery Time : 15days
    • Product Details
    • Company Profile

    2 Pole 2NC DIN Rail Household Modular Contactor 25A 63A


    SCH8 SONTUOEC 25A 63A 2 Pole 2NC DIN Rail Contactor Household Modular AC Contactor

    Application:

    SCH8 series SONTUOEC Modular Household AC Contactor is applicable to alternative circuit with rated voltage up to 400V, rated currentup to 100A and rated frequency 50/60Hz. The product is used for remote switching and controlling HC serial could satisfies most application cases, such as household appliances, hotels, low inductance loading and household electromotor loading control for similar application.Our contactors can be combined with auxiliary control, protection and indication functions.The product is in conformity with IEC/EN 61095


    SCH8 series Houlsehold Contactors can be used to remote control applications in alternative networks:
    lighting, heating, ventilation,roller blinds, sanitary hot water mechanical ventilation systems, etc load-shedding of non-priority circuits.

    Function:

    Remote switching and controlling of power circuits;

    Used in building automation, controlling of small pumps, ventilations, heating systems, lighting systems, and so on.

    2 Pole 2NC DIN Rail Household Modular Contactor 25A 63A


    2 Pole 2NC DIN Rail Household Modular Contactor 25A 63A


    2 Pole 2NC DIN Rail Household Modular Contactor 25A 63A

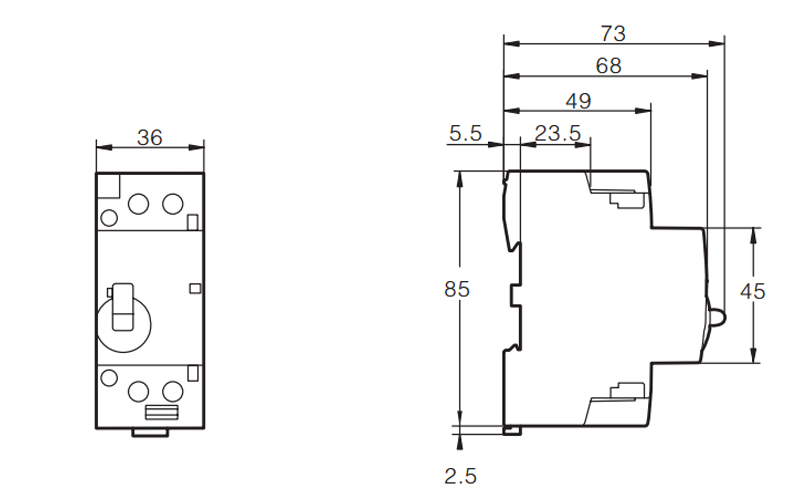

    Outline and installation dimensions

    SCH8 SONTUOEC AC Household Contactor 230/400V
    High degree of Electrical life
    The SCH8 modular contactor has been tested to withstand 100,000 times full load switch ON or OFF under AC-a load Utilization category
    Noiseless and hum free
    The SCH8 SONTUOEC contactor eliminates the obvious impact sound of the traditional contactor at the moment of pull-in,and eliminates contactor in the low-frequency hum noise of operating Applicable to most electric areas of commercial building.In particular,the modular contactor AC/DC series achieves free noise and creates a quiet environment for you
    Energy Saving
    The SCH8 contactor has an optimized electromagnetic system,which greatly reduces the holding power of contactor
    Compact design
    The width of SCH8 contactors is much smaller than traditional AC Contactors, which saves users more installation space and can be conveniently installed in ordinary distribution boxes
    Auxiliary function
    The SCH8 contactor can be extended with auxiliary contacts on the right side of the product, which is more suitable for signal feedback requirements in an intelligent control environment
