| Ask Lasest Price | |
| Brand Name : | SONTUOEC |
| Model Number : | ST4FP60-63 |
| Certification : | CE, SAA, Semko ,ISO9001 |
| Price : | Negotiable |
| Supply Ability : | 5000PCS/DAY |
| Delivery Time : | 15DAYS |

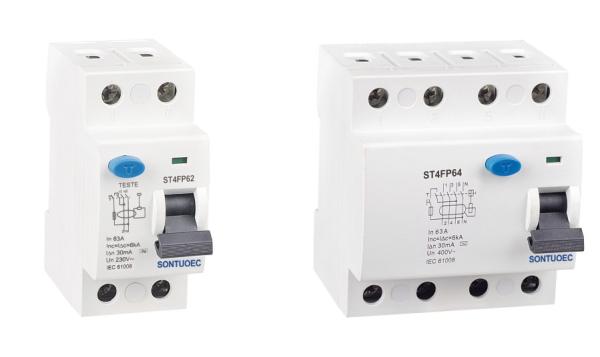

ST4FP60 Series RCCB 4p Residual Current Circuit Breaker
The Residual Current Circuit breaker RCCBs are the safest device to detect and trip against electrical leakage currents, thus ensuring protection against electric shock caused by indirect contacts. These devices must be used in series with an MCB or fuse which protects them from the potentially damaging thermal and dynamic stresses of any over currents. They also act as the main disconnecting switches upstream of any derived MCBs (e.g. domestic consumer unit)
SPECIFICATIONS
| Sandard | IEC/EN61008 | ||
| Electrical features | Type(wave form of the earth leakage sensed) | Electro-magnetic type, electronic type | |
| Rated current In | A | A,AC | |
| Poles | P | 2,4 | |
| Rated voltage Us | V | AC 240/415 | |
| Rated sensitivity I△n | A | 0.01,0.03,0.1,0.3,0.5 | |
| Insulation voltage Ui | V | 500 | |
| Rated residual making and breaking capacity I△m | A | 630 | |
| Short-circuit current I△c | A | 6000 | |
| SCPD fuse | A | 6000 | |
| Rated frequency | Hz | 50/60 | |
| Pollution degree | 2 | ||
| Mechanical features | Electrical life | t | 4000 |
| Mechanical life | t | 10000 | |
| Protection degree | IP20 | ||
| Ambient temperature (with daily average ≤35℃) | ℃ | -25~+40 | |
| Storage temperature | ℃ | -25~+70 | |
| Installation | Terminal connection type | Cable/U-type busbar/pin-type busbar | |
| Terminal size top/bottom for cable | mm2 | 25 | |
| AWG | 18-3 | ||
| Terminal size top/bottom for busbar | mm2 | 25 | |
| AWG | 18-3 | ||
| Tightening torque | N*m | 2.5 | |
| In-lbs | 22 | ||
| Mounting | On DIN rail EN 60715(35mm)by means of fast clip device | ||
| Connection | From top and bottom | ||
FAQ
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your
requirement.
Q 4.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q5. Can i take some samples?
A: Yes, we support to take samples before place the order. Just
feel free to contact with us if you have any requirements.
Q6. Are you original Factory?
A: Yes, we have our own factory .
Q7. How can you make sure the quality of the products?
A: We will accord to international quality standards to inspect
every item before leaving our factory.
|
|
