| Brand Name : | SONTUOEC, WZSTEC |
| Model Number : | RDL7-100 |
| Certification : | CE, SAA, Semko ,ISO9001 |
| Price : | Negotiable |
| Supply Ability : | 5000PCS/DAY |
| Delivery Time : | 15DAYS |

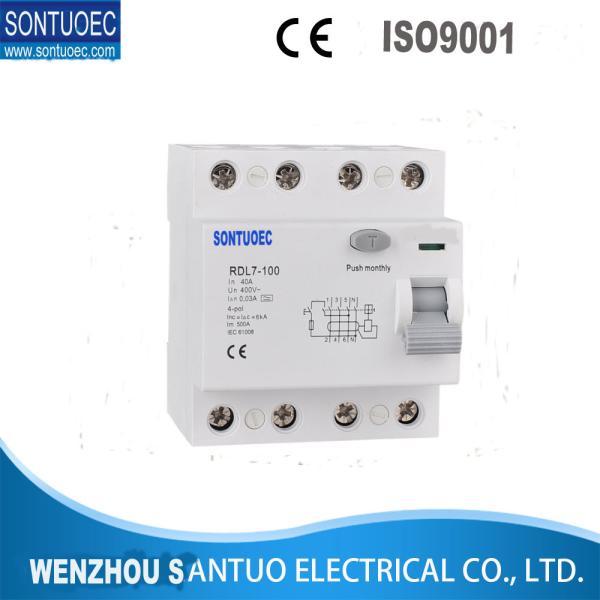

Rdl7-100 4p gray Series RCCB Residual Current Circuit Breaker
The Residual Current Circuit breaker RCCBs are the safest device to detect and trip against electrical leakage currents, thus ensuring protection against electric shock caused by indirect contacts. These devices must be used in series with an MCB or fuse which protects them from the potentially damaging thermal and dynamic stresses of any over currents. They also act as the main disconnecting switches upstream of any derived MCBs (e.g. domestic consumer unit).
RDL7-100 residual current circuit breaker is in conformity with the
standards of IEC61008.It can cut off the fault circuit immediately
on the occasion of shock hazard or earth leakage of trunkline.Thus
it is suitable to avoid the shock hazard and fire caused by earth
leakage.It can be used in circuits up to single phase 240V,three
phase 415V,50 or 60Hz.
Product Over View:
1. Provide protection against earth fault/leakage current and function of isolation
2. High short-circuit current withstand capacity
3. Applicable to terminal and pin/fork type busbar connection
4. Equipped with finger protected connection terminals
5. Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
6. Independent of power supply and line voltage, and free from external interference, voltage fluctuation.
| Breaker | RDL7-100 | |||||||||
| Number of poles | 2P 4P | |||||||||
| Rated current in | A 10 16 25 32 40 50 63 80 100 | |||||||||
| Rated frequency | Hz 50 | |||||||||
| Rated operating voltagge Ue | V 230,400 | |||||||||
| Rated insulation voltage Ui | V 500 | |||||||||
| Rated short circuit breaking capacity Im | A 630 1000 | |||||||||
| Rated limited short circuit current Inc | A 6000 | |||||||||
| Rated residual action current I△n | mA 30 100 300 | |||||||||
| Anti~interference level | 0.5 цs/100kHz,200A peak value | |||||||||
| 8/20цs, 3000A peak valye | ||||||||||
| Mechanical life | times 10000 | |||||||||
| Protection level | lp20 | |||||||||
| Product type | Type A, Type AC,Type S | |||||||||
| Installation mode | Din rail plug~in | |||||||||
| Connection mode | Terminal with clip | |||||||||
| Ambient air temperature | Min/Max ℃ -25/+40 | |||||||||
| Altitude | Max m 2000 | |||||||||
| Leading wire | Terminal busbar method Min/Max mm 1/35 | |||||||||
| Screw torque | N · m 2 2.5 | |||||||||
| Outline dimensions (length X width X height) | 2P mm 90×36×76 | |||||||||
| 4P mm 92×72×76 | ||||||||||
| Weight | 2P kg 0.275 | |||||||||
| 4P kg 0.360 | ||||||||||
