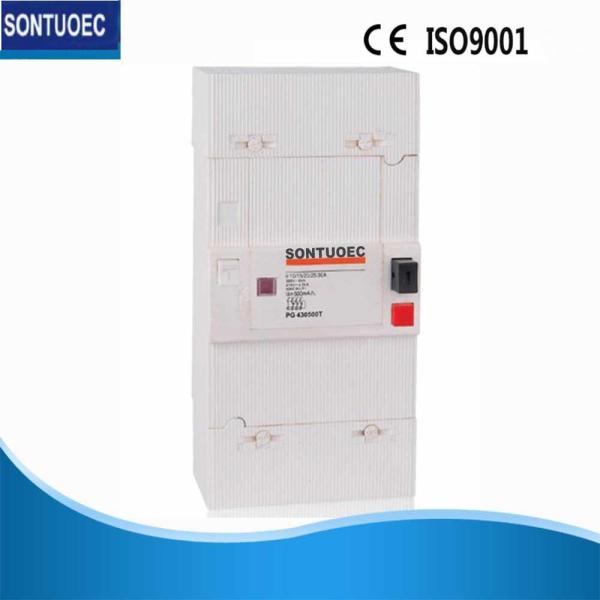

NFC62411 Electric Leakage Circuit Breaker , Mini Overload Protection 4 Pole ELCB
GENERAL
STG series adjustable residual current circuit breaker is suitable
for AC 50/60Hz,230/400V circuit,prevents from
overloading,short-circuit etc.On the occasion of shock hazard or
earth leakage,it will trip immediately.At the same time,the rated
current of overload protection can be adjustable.
The Earth circuit is modified when an ELCB is used; the connection to the Earth rod is passed through the ELCB by connecting to its two Earth terminals. One terminal goes to the installation Earth CPC (circuit protective conductor, aka Earth wire), and the other to the Earth rod (or sometimes other type of Earth connection).
Specification:
| Type | STG230 | STG420 |
| Rated Current(A) | 10A,15A,20A,25A,32A,40A,50A,60A | 10A,15A,20A,25A,32A,40A,50A,60A |
| Pole Number | 2Pole | 4Pole |
| Leakage acting current(mA) | 300mA,500mA | 300mA ,500mA |
| Range of break-off | 0.5~1.0X IΔn | 0.5~1.0X IΔn |
| Rated Voltage(V) | 220V-250VAC | 240V/415VAC |
| Tripping time | 100ms | 100mS |
| Life | 100000 times | 100000 times |
| Ambient Temperature | -5°C ~ +55 °C | -5°C ~ +55 °C |
