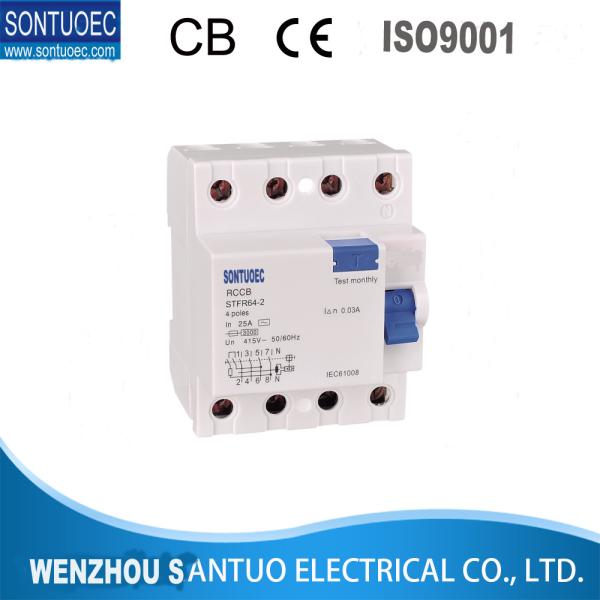

STL-364 Series RCCB 4p 230v 400V Residual Current Circuit Breaker resin cover
STL-364 rrent circuit breaker is in conformity with the standards of
IEC61008.It can cut off the fault circuit immediately on the
occasion of shock hazard or earth leakage of trunkline.Thus it is
suitable to avoid the shock hazard and fire caused by earth
leakage.It can be used in circuits up to single phase 240V,three
phase 415V,50 or 60Hz.
Product Over View:
1.Provide protection against earth fault/leakage current and function of isolation
2.High short-circuit current withstand capacity
3.Applicable to terminal and pin/fork type busbar connection
4. Equipped with finger protected connection terminals
5.Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
6.Independent of power supply and line voltage, and free from external interference, voltage fluctuation.
Specifications
| Model | Electronic type / magnetic type |
| Residual Current characteristics | A, AC |
| Pole NO | 2P/4P |
| Rated Current (A) | 16A,20A,25A,32A,40A,63A |
| Rated Voltage (V) | 240/ 415V |
| Rated Residual operating current | 30 ma , 100ma ,300ma ,500ma |
| Rated conditional resdual short circuit current | 6KA |
| Electro-machanical endurance | over 4000 cycles |
