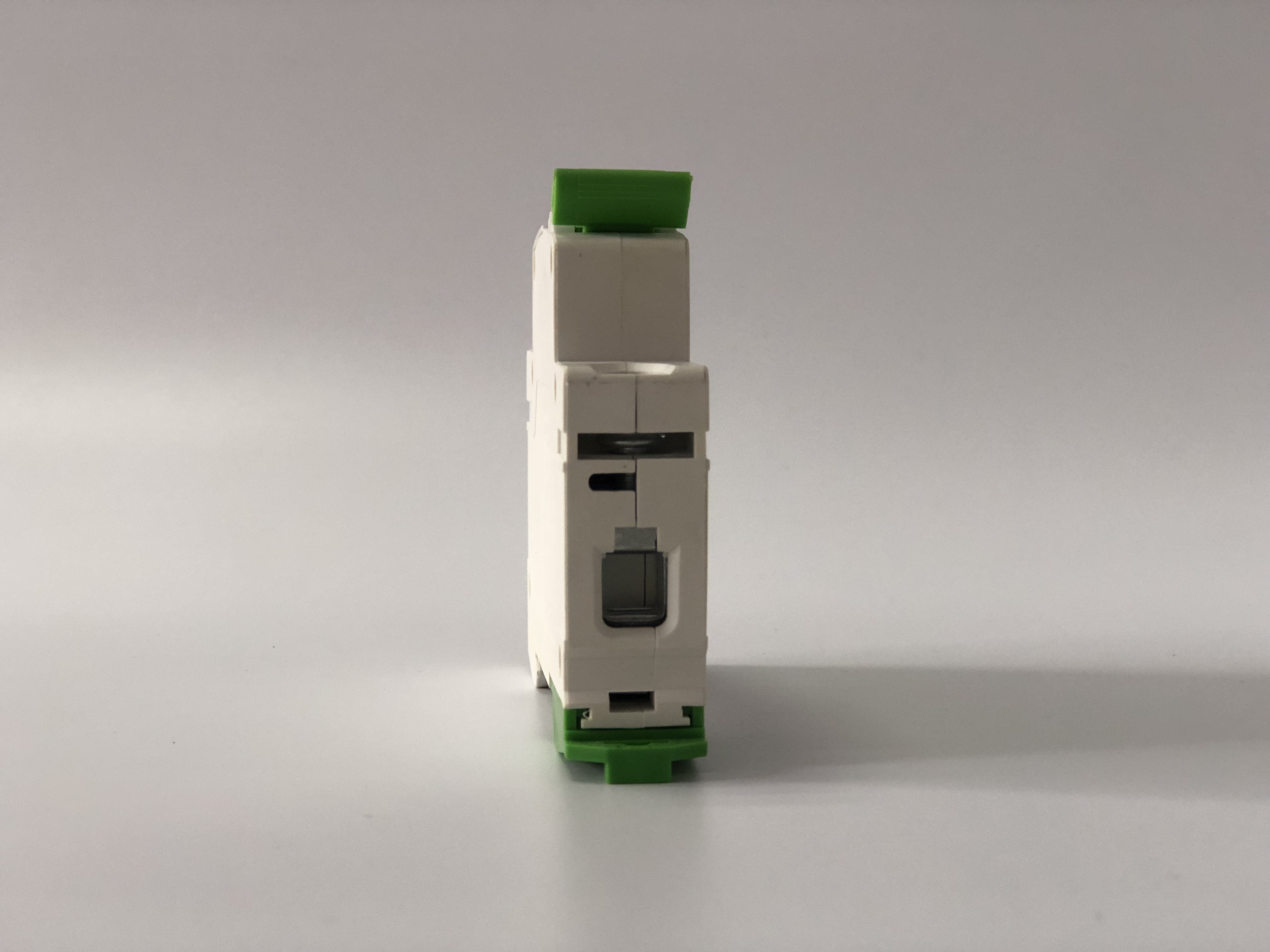

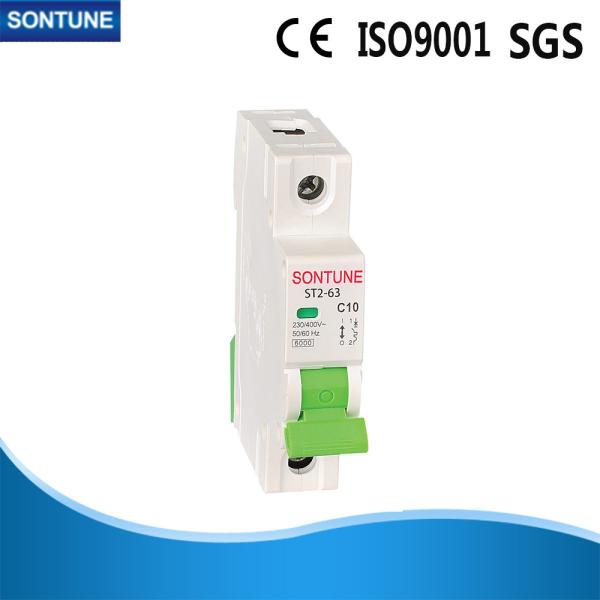

Single Pole MCB Circuit Breaker 32A High Breaking Capacity GB16917 Standard

General

ST2-63 series high breaking capacity mini circuit breaker is used in AC50/60Hz, rated voltage of 230V

3, 4 poles 400V, rated current to 63A for overload and short-circuit protection as well as for unfrequented switching under normal case.It is used extensively for industry, commercial and household.This product conform to IEC60898 standard.

1. Application:For protecting cables and equipments against overload and short circuit.

2. General rules for choosing MCB.

1. Technical data of the network at the point considered

The earthing systems,short-circuit current at the circuit breaker installation point,which must always be less than the breaking capacity of this device,network normal voltage.

2. There are 3 curvve characteristics for magnetic operation:

B curve (3-5In) protection and control of the circuits against length cables in TN and IT systems.

C curve (5-10In) protection and control of the circuits against overloads and short-circuits; protection for resistive and inductive loads with low inrush current.

D curve (10-14In) protection and control of the circuits against overloads and short-circuits; protection for circuits which supply loads with high inrush current at the circuit closing (LV/LV transformers,breakdown lamps.)

Specifications

WENZHOU SANTUO ELECTRICAL Co., Ltd.(Before:YUEQING SHANTUO ELECTRICAL CO.,LTD.) is one of manufactories that specialize in manufacturing Circuit Breaker, AC CONTACTOR, Thermall Relay,Magnetic Starter(DOL),Solid State Relay,Distribution Case, Voltage Regulator  is located in Liushi, Wenzhou, China that called " the Capital of Low Voltage Electronic Products", enjoying convenient transportation access and a beautiful environment. The products have passed CE approvals and strictly comply with IEC standards. The company has advanced detection instruments and strong technical force with strong research and development capability, product constantly updated. The products export Europe, Asia, Southern Amercia, Middle East, Western Africa market.The products have passed CE certificate. And our Teams have more than 20years Experience.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

On the base of guarrantee the quality, we will try our best to design new model with ourselves patents for the coming years.
